R.C. Coupled Amplifier Two Stage
Product Code : JA-AK-1125

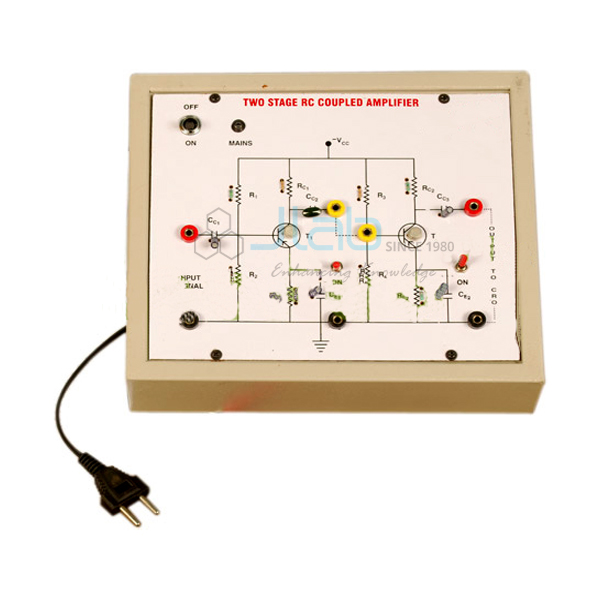

The R.C. Coupled Amplifier Two Stage apparatus (SKU JA-AK-1125) is used to measure the voltage gain and frequency response of a two-stage resistance-capacitance coupled transistor amplifier. The two transistors are mounted on the front panel so the signal path through both stages can be traced, and a regulated DC power supply is built in. The listing names a function generator (type TE-93), a VTVM and a CRO as optional accessories for the measurement.
Specifications
The product data lists the following:
| Product | R.C. Coupled Amplifier Two Stage |
| SKU | JA-AK-1125 |
| Studies | Voltage gain and frequency response |
| Amplifier | Two-stage RC coupled, two transistors on the front panel |
| Power supply | Built-in regulated DC |
| Optional accessories | Function generator TE-93, VTVM, CRO |
Scope of supply and ordering
The amplifier unit is supplied with its built-in supply; the generator, VTVM and CRO are optional items priced separately. Quantities and packing are confirmed on the quotation.
Frequently asked questions
What is measured with the two-stage RC coupled amplifier?
The voltage gain and the frequency response of the two cascaded stages.
Which instruments are needed with it?
A signal source and a meter or CRO; the listing offers a TE-93 function generator, a VTVM and a CRO as options.
