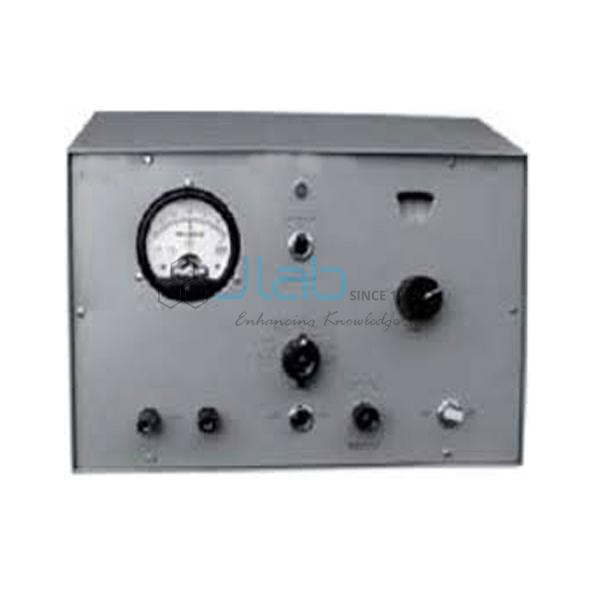

Conductivity Bridge
Product Code : JA-TAMI-1025
The Conductivity Bridge (SKU JA-TAMI-1025) measures the conductance of an electrolyte solution, or its resistance, directly. It is calibrated in mho, works at 50 Hz or 1 kHz so that the cell is driven by alternating current, and shows the balance point by null detection on its meter. A conductivity cell is supplied with it. Seven ranges cover conductance from 1 mho down to 1 micromho, equal to resistance from 0.1 ohm to 1 megohm.
Specifications
Ranges and accuracy as listed:
| Product | Conductivity Bridge |
| SKU | JA-TAMI-1025 |
| Measures | Conductance or resistance of electrolyte solutions |
| Working frequency | 50 Hz and 1 kHz |
| Resistance range | 0.1 ohm to 1 megohm |
| Conductance range | 1 mho to 1 micromho in seven ranges |
| Accuracy | ±1% at mid-scale, ±3% at both ends |
| Detection | Null detection on meter |
| Supplied with | Conductivity cell |
Practical work
- Measuring the conductance of electrolyte solutions in physical chemistry practicals
- Conductometric titrations, following the change in conductance as titrant is added
- Finding cell constants and equivalent conductance of salt solutions
- Demonstrating null-balance measurement on an AC bridge
Scope of supply and ordering
The bridge is supplied with a conductivity cell. Additional cells, quantities and packing are confirmed on the quotation.
Frequently asked questions
What does the Conductivity Bridge measure?
The conductance of an electrolyte solution, or its resistance, read directly.
What ranges does it cover?
1 mho to 1 micromho in seven ranges, corresponding to 0.1 ohm to 1 megohm.
Why does it work at 50 Hz and 1 kHz?
The cell is measured with alternating current at either of these two frequencies.
Is a cell included?
Yes, a conductivity cell is supplied with the bridge.
