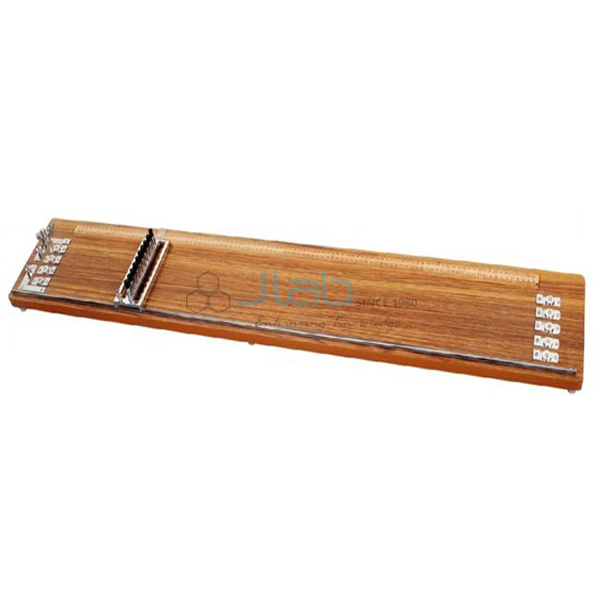

Potentiometer with Spring Type Press Jockey
Product Code : JA-SI-8112
The Potentiometer with Spring Type Press Jockey (SKU JA-SI-8112) replaces the loose pencil jockey with a brass sliding jockey that runs on a metal rod. The jockey carries four single sharp pencil springs with separately loaded contacts, and an overlapping Perspex pointer helps read the raised scale. A pulley arrangement keeps the wires tight.
Specifications
Features given in the product data:
| Product | Potentiometer with Spring Type Press Jockey |
| SKU | JA-SI-8112 |
| Jockey | Spring-type brass sliding press jockey, moulded brass alloy |
| Contacts | Four single sharp pencil springs, loaded separately |
| Guide | Slides over a metal rod |
| Pointer | Overlapping Perspex pointer for the raised scale |
| Wire tension | Pulley arrangement |
| Versions | 4 wire and 10 wire |
Scope of supply and ordering
State the 4-wire or 10-wire version on your enquiry; quantities and packing are then confirmed on the quotation.
Frequently asked questions
How is this potentiometer different from the pencil jockey model?
It uses a spring-type brass jockey that slides on a metal rod, with a Perspex pointer over the scale.
How are the wires kept tight?
A pulley arrangement tensions the wires.
