Pulse Amplitude Modulation and Demodulation
Product Code : JA-TKFCL-1201

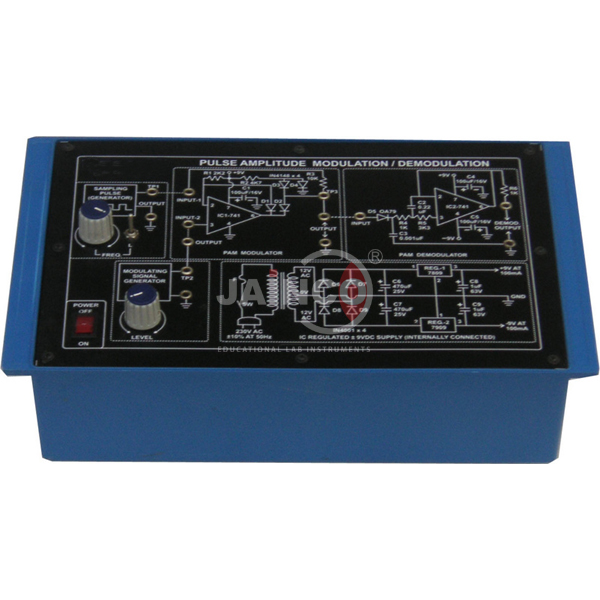

The Pulse Amplitude Modulation and Demodulation unit (SKU JA-TKFCL-1201) is used in communication laboratories to observe how the amplitude of a pulse train follows a message signal, and how the message is recovered at the demodulator. An IC-regulated power supply of +/-9 V DC at 100 mA is connected internally, and the unit runs from 230 V +/-10%, 50 Hz mains. It weighs about 3 kg and measures W 340 x H 125 x D 210 mm.
Specifications
The listing gives these details:
| Product | Pulse Amplitude Modulation and Demodulation |
| SKU | JA-TKFCL-1201 |
| Function | Pulse amplitude modulation and demodulation |
| Internal supply | +/-9 V DC, 100 mA, IC regulated |
| Mains | 230 V +/-10%, 50 Hz |
| Weight | About 3 kg |
| Dimensions | W 340 x H 125 x D 210 mm |
Scope of supply and ordering
Each unit is supplied with its internal supply. Leads, a CRO if needed, quantities and packing are confirmed on the quotation.
Frequently asked questions
What supply does the PAM unit use?
An internal IC-regulated +/-9 V DC supply at 100 mA, run from 230 V, 50 Hz mains.
What are its size and weight?
W 340 x H 125 x D 210 mm, about 3 kg.
Related products
Communication and pulse apparatus is in our scientific instrument range.
Request a quote
For the PAM modulation and demodulation unit, send the quantity via our contact page. Tender and project enquiries can be sent through the tenders page.
