Absorption Wave Meter
Product Code : JA-TAMI-1015

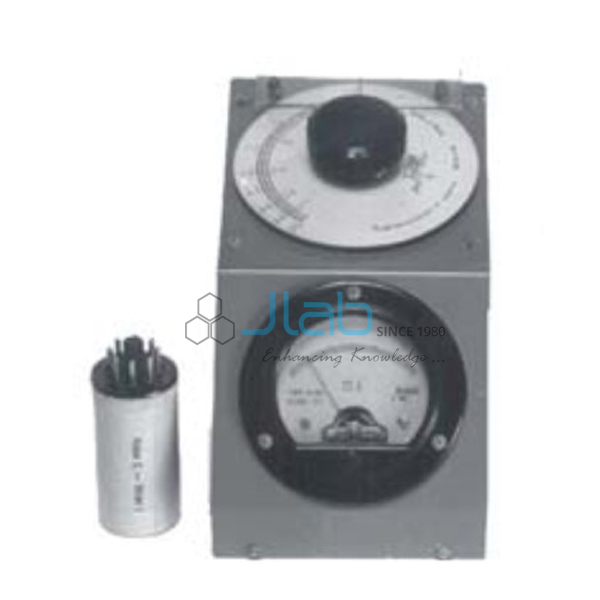

The Absorption Wave Meter (SKU JA-TAMI-1015) detects radio-frequency radiation from an oscillator or transmitter. Its tuned LC circuit, a variable capacitor with plug-in inductors, is adjusted until it absorbs the most energy from the field; the setting then gives the wavelength, and the indication shows the relative strength. Six plug-in coils together cover 100 kHz to 100 MHz.
Specifications
Tuning parts and coverage as listed:
| Product | Absorption Wave Meter |
| SKU | JA-TAMI-1015 |
| Function | Detects RF radiation; wavelength and strength by tuning |
| Tuned circuit | Variable capacitor with plug-in inductors |
| Coils | Six plug-in coils |
| Frequency coverage | 100 kHz to 100 MHz |
Scope of supply and ordering
The wave meter is quoted with its set of plug-in coils. Quantities and packing are confirmed on the quotation.
Frequently asked questions
What frequency range does the Absorption Wave Meter cover?
100 kHz to 100 MHz, using six plug-in coils.
How is the wavelength found?
By tuning the LC circuit of the variable capacitor and plug-in coil until the absorbed signal is at its peak.
