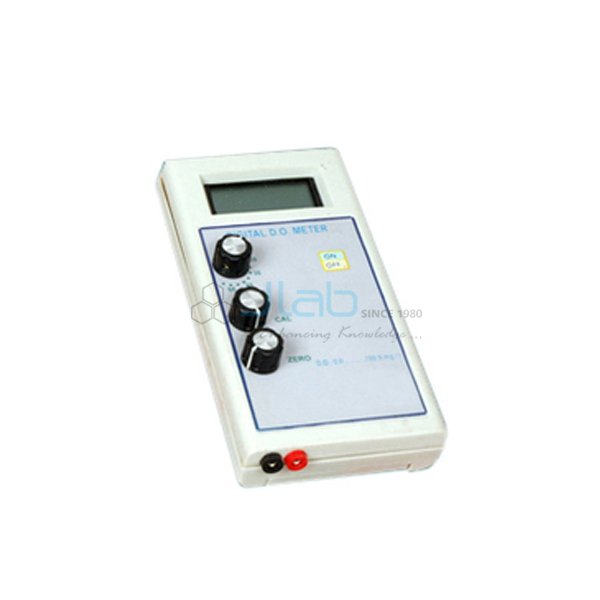

Portable Dissolved Oxygen Meter
Product Code : JA-ELA-5391
The Portable Dissolved Oxygen Meter (SKU JA-ELA-5391) is a battery-powered meter supplied by JaincoLab for measuring dissolved oxygen (D.O.) and temperature in water. It reads D.O. from 0 to 20.0 ppm and temperature from 0 to 50 °C at 0.1 resolution, using an amperometric gold/silver membrane sensor, and shows the result on a 3 1/2 digit LCD. A single 9 V battery powers it, which suits field sampling.
Specifications
The Portable Dissolved Oxygen Meter measures 0 to 20.0 ppm D.O. and 0 to 50 °C at 0.1 ppm and 0.1 °C resolution, with manual temperature compensation and a membrane-type amperometric sensor.
| Product | Portable Dissolved Oxygen Meter |
| SKU | JA-ELA-5391 |
| Range, D.O. | 0 to 20.0 ppm |
| Range, temperature | 0 to 50 °C |
| Resolution | 0.1 ppm (D.O.), 0.1 °C (temperature) |
| Accuracy, D.O. | 0.1 ppm ± 1 count |
| Temperature compensation | 0 to 50 °C, manual |
| Accuracy of compensation, D.O. | ± 3% |
| D.O. sensor | Amperometric, gold/silver membrane type |
| Display | 3 1/2 digit seven-segment LCD |
| Power | 1 x 9 V battery |
Uses of the portable DO meter
Dissolved oxygen is a basic measure of water quality, and a portable DO meter lets it be read at the sampling point as well as on the bench.
- Water quality practicals in environmental science and B.Sc. courses
- Checking ponds, tanks and rivers during field work
- Aquaculture and fish tank monitoring
- Oxygen measurements in biology experiments on respiration and photosynthesis
Scope of supply and ordering
The listing is for the D.O. meter with its membrane sensor, supplied by JaincoLab; spare membranes, electrolyte, carrying case, quantity, packing and lead time are confirmed on the quotation.
Frequently asked questions
What range does the DO meter cover?
0 to 20.0 ppm dissolved oxygen and 0 to 50 °C temperature.
Is temperature compensation automatic?
No. Compensation from 0 to 50 °C is set manually, with a compensation accuracy of ± 3% for D.O.
What kind of sensor does it use?
An amperometric gold/silver membrane-type D.O. sensor.
Related products
- Digital D.O cum Temperature Meter
- Digital pH Meter
- Digital Conductivity Meter
- Digital pH, Conductivity & Temperature Meter
Other water analysis meters are in the educational laboratory apparatus range.
Request a quote
Prices for the Portable Dissolved Oxygen Meter (JA-ELA-5391) are sent on request; write to [email protected] or use the contact page. Institutions and contractors buying under a tender can also reach us via the tenders page.
