Polishing and Lapping Machine
Product Code : JA-RT-9854

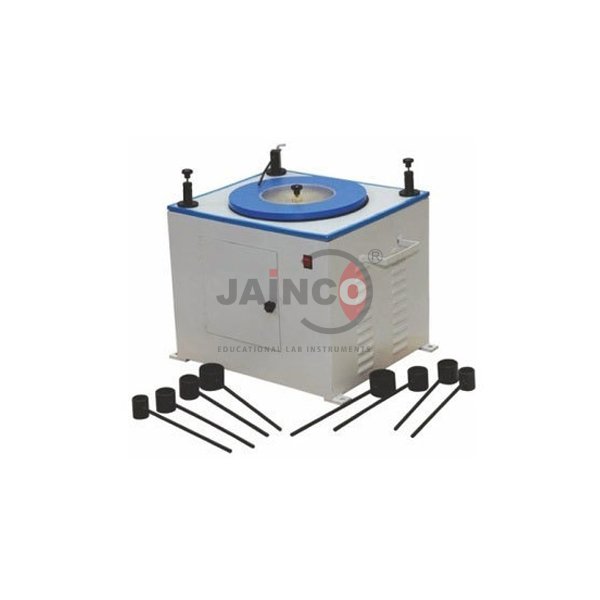

The Polishing and Lapping Machine (SKU JA-RT-9854) is a bench-mounted, single-spindle lapping machine for the final polishing of mounted rock or concrete specimens. It is driven by a 1/4 HP single-phase AC motor at 450/500 rpm, and a swing-in tap supplies water continuously while polishing. This lapping machine is supplied by JaincoLab for rock mechanics, petrology and concrete laboratories preparing specimens for microscopy and testing.
Specifications
The machine is bench mounted with a single spindle running at 450/500 rpm on a 1/4 HP single-phase AC motor, with a swing-in water tap; lap diameter and dimensions are not listed in the product data and are confirmed on the quotation.
| Product | Polishing and Lapping Machine |
| SKU | JA-RT-9854 |
| Type | Bench-mounted, single-spindle lapping machine |
| Speed | 450/500 rpm |
| Motor | 1/4 HP, single phase AC |
| Water | Swing-in tap for continuous water supply |
| Use | Final polishing of mounted rock or concrete specimens |
Applications of the polishing and lapping machine
Technicians hold the mounted specimen on the rotating lap with water running and work through finer abrasives until the surface is flat and polished.
- Final polishing of mounted rock specimens
- Polishing concrete specimens for examination
- Preparing surfaces for reflected-light microscopy
- Flat lapping of specimen faces
- Petrology and materials laboratories
Scope of supply and ordering
This listing covers one polishing and lapping machine. Accessories, spares and quantities are confirmed on the quotation. Laps, abrasives and polishing cloths are confirmed on the quotation.
Packing, lead time and any minimum order for the Polishing and Lapping Machine are confirmed per quotation according to order size and destination. Bulk orders for institutes are supplied, and export consignments to buyers in Africa, the Middle East and South and South-East Asia are quoted on request.
Frequently asked questions
What speed does it run at?
450/500 rpm.
What motor is fitted?
A 1/4 HP single-phase AC motor.
How is water supplied?
Through a swing-in tap for continuous supply during operation.
Related products
- Core Cutting and Grinding Machine
- Core Drilling Machine
- Point Load Index Tester
- Slake Durability Apparatus
More rock mechanics apparatus is listed in the rock testing equipment range from JaincoLab.
Request a quote
Send an enquiry for the Polishing and Lapping Machine (SKU JA-RT-9854) with the quantity and delivery destination using the JaincoLab contact page or by email to [email protected]. Buying under a laboratory tender? Use our tenders page.
