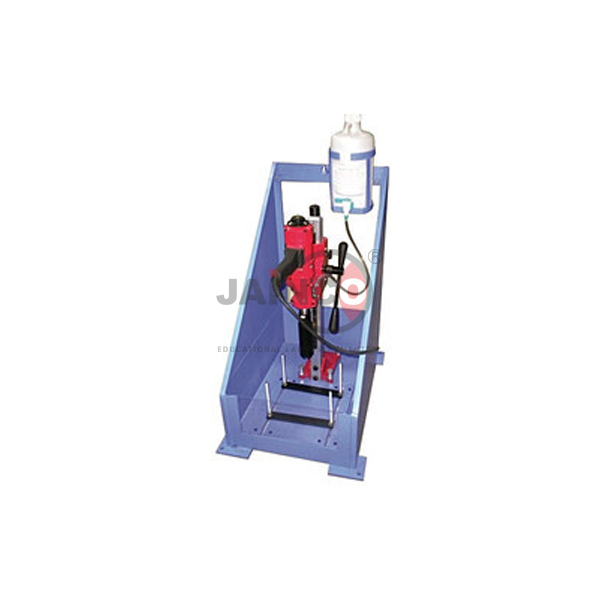

Core Drilling Machine
Product Code : JA-RT-9847
The Core Drilling Machine (SKU JA-RT-9847) is a heavy-duty pillar-type drill for preparing rock cores from regular and irregular samples, in core sizes from EX up to 100 mm. It has a 1500 W drive with varying cutting feeds, a water-fed swivel head for connection to a water supply, a clamping arrangement that holds regular or irregular specimens to the base and provision at the base for water collection and drainage. A water tank is standard. This core drilling machine is supplied by JaincoLab for rock mechanics and geotechnical laboratories.
Specifications
The machine has a heavy-duty pillar frame with a 1500 W drive, varying cutting feeds, a water-fed swivel head, a specimen clamping arrangement and base water collection, runs on 220 V single phase AC and produces cores from EX to 100 mm.
| Product | Core Drilling Machine |
| SKU | JA-RT-9847 |
| Frame | Heavy-duty pillar type |
| Power | 1500 W |
| Core size | EX to 100 mm |
| Feeds | Varying cutting feeds |
| Coolant | Water-fed swivel head; water collection and drainage at base; water tank standard |
| Clamping | Holds regular and irregular specimens to the base |
| Supply | 220 V, single phase AC |
Applications of the rock core drilling machine
Technicians clamp a rock block to the base, drill cores with water cooling at a suitable feed and then trim them for strength, triaxial and Brazilian tests.
- Drilling cores from rock blocks and boulders
- Core preparation from irregular field samples
- Specimens for UCS, triaxial and Brazilian tests
- Concrete core sampling practice
- Rock mechanics and geotechnical laboratories
Scope of supply and ordering
This listing covers the core drilling machine with swivel head, clamping arrangement and standard water tank. Accessories, spares and quantities are confirmed on the quotation. Core bits of the required sizes are confirmed on the quotation.
Lead time, MOQ and packing are set on each quotation for the ordered quantity and delivery destination. The Core Drilling Machine can be ordered for a single laboratory or as part of a complete laboratory package for a college or training programme.
Frequently asked questions
Which core sizes can be drilled?
From EX up to 100 mm.
What power supply does it need?
220 V, single phase AC; the drive is 1500 W.
How is the bit cooled?
Through a water-fed swivel head, with water collection and drainage at the base.
