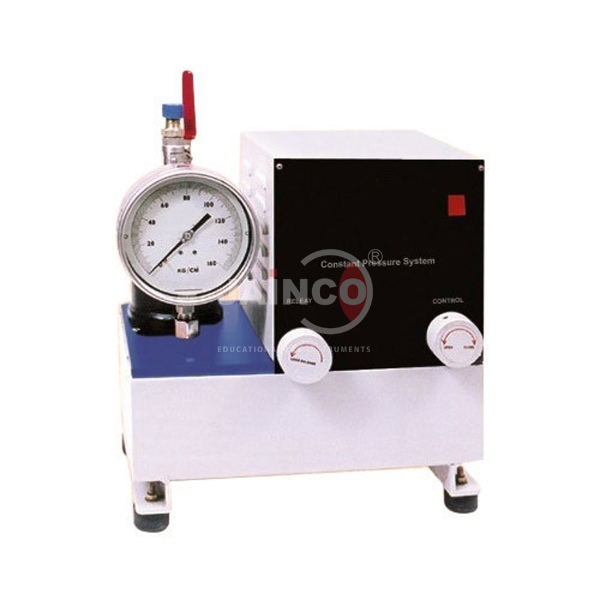

Constant Pressure System for Rocks
Product Code : JA-RT-9845
The Constant Pressure System for Rocks (SKU JA-RT-9845) supplies a steady confining pressure to triaxial cells during rock testing. An oil pump runs continuously on an electric motor throughout the test to hold the set pressure, which can be raised or lowered by turning a control knob, continuously variable up to 160 bar. A 600 kg/cm² version is also listed. This constant pressure system for triaxial rock tests is supplied by JaincoLab for rock mechanics and geotechnical laboratories.
Specifications
The system has a motor-driven oil pump running continuously to maintain pressure, with a control knob for continuously variable confining pressure up to 160 bar; a 600 kg/cm² version is also listed, and motor rating and reservoir size are not listed in the product data and are confirmed on the quotation.
| Product | Constant Pressure System for Rocks |
| SKU | JA-RT-9845 |
| Use | Confining pressure for rock triaxial cells |
| Pump | Oil pump driven continuously by an electric motor |
| Pressure | Continuously variable up to 160 bar (a 600 kg/cm² version is also listed) |
| Control | Control knob to raise or lower pressure |
Applications of the constant pressure system
The system is connected to a triaxial cell such as a Hoek cell and set to the required confining pressure, which it holds steady while the axial load is applied to the rock core.
- Confining pressure for triaxial rock strength tests
- Tests at several confining pressures for failure envelopes
- Holding constant cell pressure during long tests
- Rock mechanics research and teaching laboratories
- Mining and civil engineering practicals
Scope of supply and ordering
This listing covers the constant pressure system with motor-driven oil pump and control. Accessories, spares and quantities are confirmed on the quotation. Hoses, gauges and the triaxial cell are confirmed on the quotation.
Minimum order quantity, packing and lead time for the Constant Pressure System for Rocks are stated on the quotation once the quantity and delivery destination are known. JaincoLab supplies single laboratory orders, bulk requirements for engineering colleges and polytechnics, and tender lots.
Frequently asked questions
What pressure does it provide?
Continuously variable confining pressure up to 160 bar; a 600 kg/cm² version is also listed.
How is the pressure held constant?
An oil pump driven continuously by an electric motor maintains the set pressure.
How is the pressure adjusted?
By turning a control knob to increase or decrease it.
