Paddle Wheel Flow Meter
Product Code : JA-FMAHLE-10009

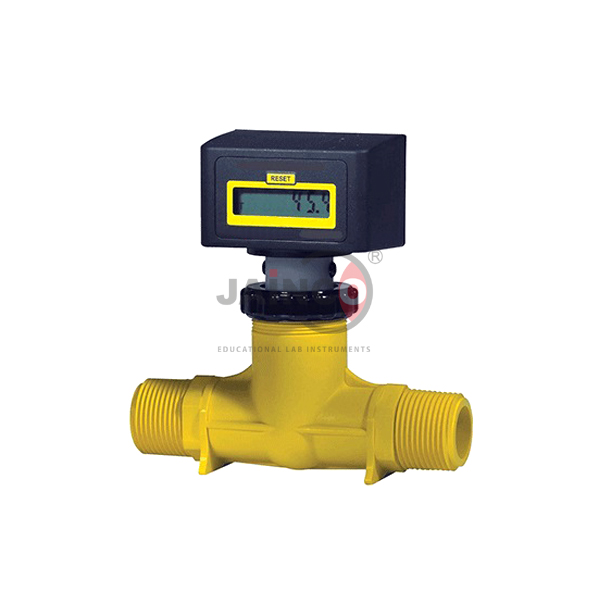

The Paddle Wheel Flow Meter (SKU JA-FMAHLE-10009), supplied by JaincoLab, is an accessory for a fluid mechanics trainer that measures volumetric flow with a paddle wheel turned by the liquid. The rotation is picked up without contact by a ring magnet and a Hall sensor, and the flow rate is shown on a display. This paddle wheel flow meter covers 2 to 48 L/min, can be fitted vertically or horizontally and has connections for measuring its pressure loss.
Specifications
The paddle wheel flow meter is specified by a measuring range of 2 to 48 L/min and a 24 V DC auxiliary supply, with non-contact Hall-sensor pick-up and pressure-loss connections. The trainer it fits is confirmed on the quotation.
| Product | Paddle Wheel Flow Meter |
| SKU | JA-FMAHLE-10009 |
| Measuring range | 2 - 48 L/min |
| Sensing | Non-contact, ring magnet and Hall sensor |
| Display | Flow rate display |
| Auxiliary power | 24 V DC |
| Connections | For pressure loss measurement and auxiliary power supply |
| Installation | Vertical or horizontal |
| Use | Accessory for a fluid mechanics trainer |
Experiments with the paddle wheel flow meter
The meter is used in flow measurement practicals to compare a paddle wheel meter with other flow meters and to measure the pressure loss it causes in the line.
- Measuring volumetric flow of water
- Comparing flow meter types on a trainer
- Measuring pressure loss across the meter
- Calibrating the meter against a measuring tank
Scope of supply and ordering
The listing covers the Paddle Wheel Flow Meter accessory with display. The base trainer and power supply unit are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the quantity and the delivery destination. Single trainers and complete fluid mechanics laboratories for engineering colleges, polytechnics and TVET institutes, including tender orders, are supplied.
Frequently asked questions
What range does it measure?
2 to 48 litres per minute.
How is rotation sensed?
Without contact, by a ring magnet and a Hall sensor.
Can the pressure loss be measured?
Yes. Connections are provided for pressure loss measurement.
Related products
- Electromagnetic Flow Meter
- Friction Losses in Pipe Elements
- Air Flow Experimental Plant
- Aerodynamics Trainer
See the complete fluid mechanics lab equipment range from JaincoLab for flow measurement, hydraulics and air flow.
Request a quote
For a quotation on the Paddle Wheel Flow Meter, send the quantity, any accessories needed and the delivery destination through the JaincoLab contact page or email [email protected] with SKU JA-FMAHLE-10009. Tender and project enquiries can be sent through the tenders page.
