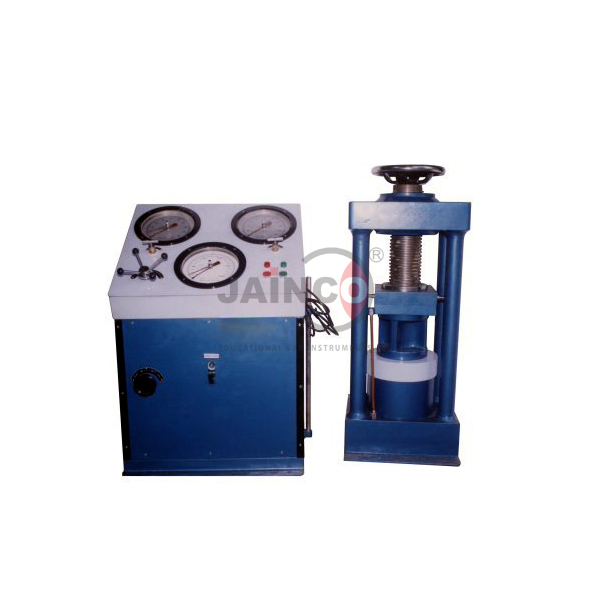

Motorized Compression/Tension Machine
Product Code : JA-CL-8846
The motorized compression/tension machine carries out compression tests up to 2000 kN and tensile tests up to 500 kN for construction materials testing in concrete and civil engineering labs. It has a 100 mm piston stroke, a 280 mm span between the columns and manual regulation of the loading rate with a pacer, and readings are taken on a two-channel universal digital indicator (SKU JA-CL-8846).
Specifications
Rated loads and fittings as listed:
| Product | Motorized Compression/Tension Machine |
| SKU | JA-CL-8846 |
| Maximum compression load | 2000 kN (0.1 kN divisions) |
| Maximum tensile load | 500 kN (0.01 kN divisions) |
| Piston stroke | 100 mm |
| Span between columns | 280 mm |
| Load rate control | Manual regulation of load/tensile rate with pacer |
| Indicator | Two-channel universal digital indicator for dynamometers and load cells |
| Load cell | Compression load cell, 2000 kN capacity |
| Remote control | Remote button switch for readout units |
Scope of supply and ordering
The listing covers the motorized machine with its two-channel digital indicator, 2000 kN compression load cell and remote button switch, supplied by JaincoLab. The number of units, the packing and the dispatch time are confirmed on the quotation.
Frequently asked questions
What are the load capacities?
2000 kN in compression, read in 0.1 kN divisions, and 500 kN in tension, read in 0.01 kN divisions.
How is the loading rate controlled?
Manually, with a pacer that regulates the load or tensile rate.
What is the span between the columns?
280 mm, with a piston stroke of 100 mm.
