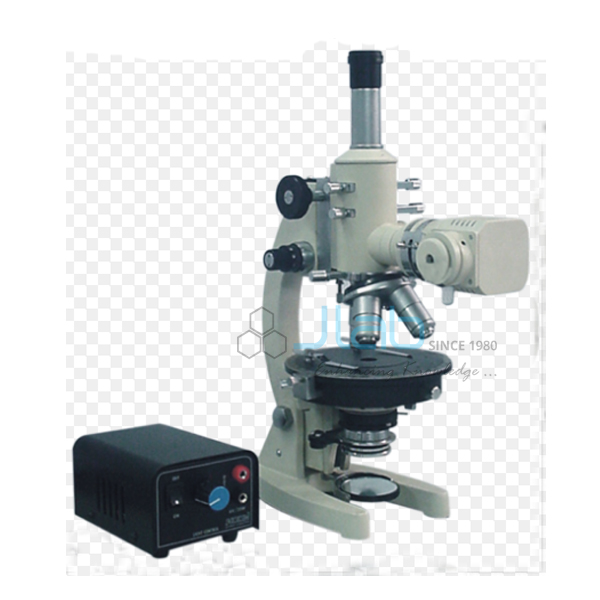

Laboratory Ore Microscope
Product Code : JA-M-998
The Laboratory Ore Microscope (SKU JA-M-998) combines reflected light from a bright field vertical illuminator with transmitted light from a sub-stage illuminator, so both polished ore sections and thin sections can be examined. A polarising condenser mount, analyser slide, Bertrand lens and mica and gypsum plates are listed, and the optics are supplied in a storage cabinet. Geology and mining engineering departments use this laboratory ore microscope for ore mineralogy practicals.
Specifications
Listed: a monocular inclinable body with coarse and graduated fine motion, bright field vertical and sub-stage illuminators, a calibrated circular centring rotatable stage, an Abbe condenser with polarising mount graduated to 360 degrees, an analyser in a slide, a Bertrand lens, mica and gypsum plates, and three objectives and eyepieces.
| Product | Laboratory Ore Microscope |
| SKU | JA-M-998 |
| Body | Monocular, inclinable; coarse and graduated fine motion |
| Illumination | Bright field vertical illuminator and sub-stage illuminator |
| Stage | Circular, centring, rotatable, with calibration |
| Condenser | Abbe, with polarising mount graduated to 360 degrees |
| Polarising accessories | Analyser in a slide; Bertrand lens; mica and gypsum plates |
| Objectives | 4x, 10x, 40x |
| Eyepieces | WF10x; 5x with cross; H10x micro |
| Storage | Optics supplied in a storing cabinet |
Applications of the laboratory ore microscope
Ore microscopy needs reflected light for opaque minerals and transmitted polarised light for the rock around them; this microscope provides both, and the Bertrand lens and accessory plates support interference figure and optical sign work in practicals.
- Identification of opaque ore minerals in polished sections
- Thin section study under transmitted polarised light
- Interference figures with the Bertrand lens
- Mining engineering and economic geology practicals
- Mineral processing laboratory training
Scope of supply and ordering
One unit is one laboratory ore microscope with the listed illuminators, stage, polarising condenser, analyser, Bertrand lens, mica and gypsum plates, three objectives and three eyepieces in a storage cabinet. Spares and quantities are confirmed on the quotation.
Packing, minimum order quantity and lead time depend on the order size and the delivery destination, and each is confirmed on the quotation. Bulk orders for school and college laboratories and tender supplies are handled, including export shipments to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Can it examine both opaque and transparent specimens?
Yes. It has a bright field vertical illuminator for reflected light and a sub-stage illuminator for transmitted light.
Which accessory plates are included?
Mica and gypsum plates are listed, with a Bertrand lens and an analyser in a slide.
Which objectives and eyepieces are supplied?
Objectives 4x, 10x and 40x, with WF10x, 5x with cross and H10x micro eyepieces.
