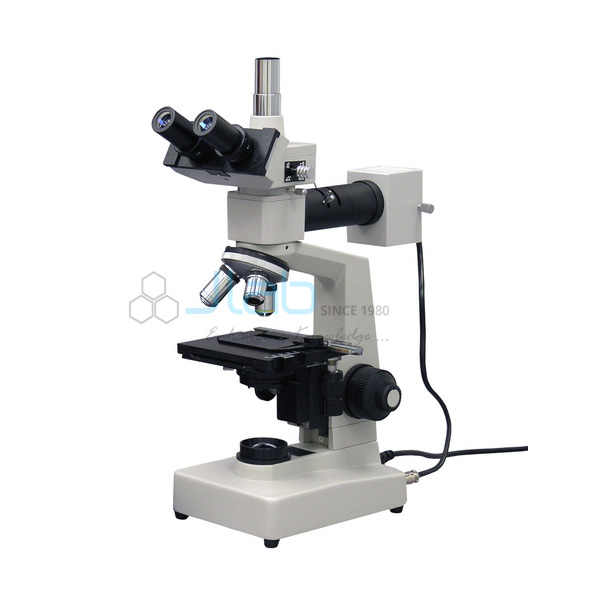

Trinocular Upright Metallurgical Microscope
Product Code : JA-M-988
The Trinocular Upright Metallurgical Microscope (SKU JA-M-988) adds a camera port to an upright reflected-light microscope, so a polished metal surface can be observed and recorded at the same time. It has a 45-degree trinocular head, coaxial focusing on both sides, a quadruple nosepiece with DIN metallurgical objectives and a 6 V 20 W halogen vertical illuminator. Engineering colleges use this trinocular upright metallurgical microscope where images of microstructure are needed for reports.
Specifications
The specification lists a 45-degree trinocular head, coaxial focusing knobs on both sides, a quadruple revolving nosepiece with click stops, a large coaxial mechanical stage, a 6 V 20 W halogen bright field vertical illuminator with field diaphragm and filter slots, and DIN M4x, M10x and M40x achromatic objectives.
| Product | Trinocular Upright Metallurgical Microscope |
| SKU | JA-M-988 |
| Head | Trinocular, inclined at 45 degrees |
| Focusing | Coaxial focusing knobs on both sides |
| Nosepiece | Quadruple revolving, accurate centring, positive click stops |
| Stage | Large coaxial mechanical stage for X-Y movement |
| Illumination | Bright field vertical illuminator, 6 V 20 W halogen; field diaphragm, filter slots, bulb centring |
| Objectives | Achromatic DIN M4x, M10x, M40x |
| Eyepieces | Any two of H6x, WF10x, H16x |
Applications of the trinocular upright metallurgical microscope
With a camera on the third port, the microscope records microstructure images for practical files, projects and inspection reports while students continue to observe through the eyepieces, which suits teaching laboratories that document metallography results.
- Recording microstructure images for practical reports
- Metallography teaching with live display
- Inspection of welds, coatings and castings
- Material science projects in engineering colleges
- Quality control training
Scope of supply and ordering
One unit is one trinocular upright metallurgical microscope with the listed stage, halogen vertical illuminator, three DIN objectives and two eyepieces from the listed choice. A camera, adapter, spare bulbs, accessories and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the quantity ordered and the delivery destination. JaincoLab supplies single-school orders as well as bulk requirements for schools, colleges and education projects, and exports to buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Can a camera be fitted?
Yes. The trinocular head has a camera port; the camera and adapter are confirmed on the quotation.
Which objectives are listed?
Achromatic DIN metallurgical objectives M4x, M10x and M40x.
Which eyepieces are supplied?
Any two of H6x, WF10x and H16x.
