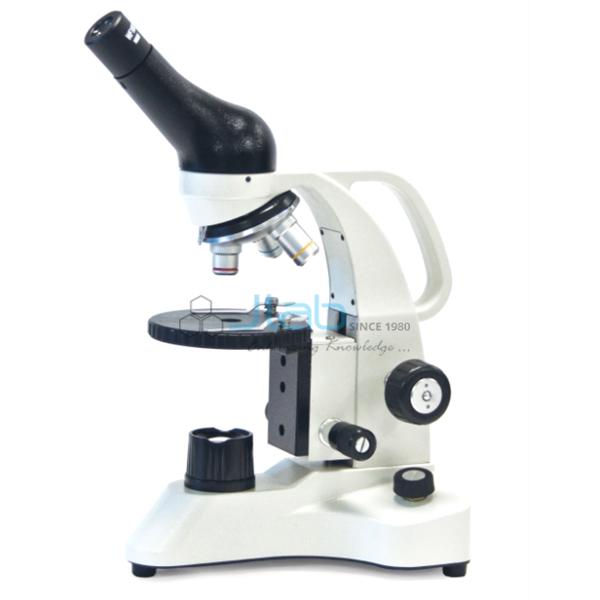

Monocular Compound Microscope
Product Code : JA-M-8057
The Monocular Compound Microscope (SKU JA-M-8057) is a student microscope supplied by JaincoLab with a cast aluminium body in grey enamel and a handle on the arm for carrying between rooms. Its monocular head is inclined at 45 degrees and rotates through 360 degrees, and the WF10x eyepiece with pointer gives magnifications from 40x to 400x on a ball-bearing objective turret with positive click stops.
Specifications
The listing for this monocular compound microscope gives the head, eyepiece, magnification range, stage, turret and body; the objective set, light source and focusing are not itemised and are stated on the quotation.
| Product | Monocular Compound Microscope |
| SKU | JA-M-8057 |
| Head | Monocular, inclined 45 degrees, rotates 360 degrees |
| Eyepiece | WF10x with pointer |
| Magnification | 40x to 400x |
| Objective turret | Ball-bearing mounted, positive click stops |
| Stage | Round floating stage for moving the slide by hand |
| Body | Cast aluminium, grey enamel finish; carrying handle on the arm |
| Packing | Fitted foam box with dust cover and instruction manual |
Where the monocular compound microscope fits
- Prepared slide work in middle and secondary school biology
- Shared use across classrooms, carried by the arm handle
- Observation from low power up to 400x
Scope of supply and ordering
Each microscope is packed in its fitted foam box with a dust cover and an instruction manual. Objectives, lighting and power are itemised on the quotation along with quantity, packing and delivery.
Frequently asked questions
How is this model different from the Cordless Compound Monocular Microscope?
The cordless model lists a rechargeable battery, LED light with intensity control and separate coarse and fine focusing. For this model the listing gives the head, eyepiece, 40x to 400x range, floating stage and turret, so lighting and focusing are stated on the quotation.
What does the pointer in the eyepiece do?
The pointer appears in the field of view, so a teacher can point out a particular cell or structure to the student at the eyepiece.
