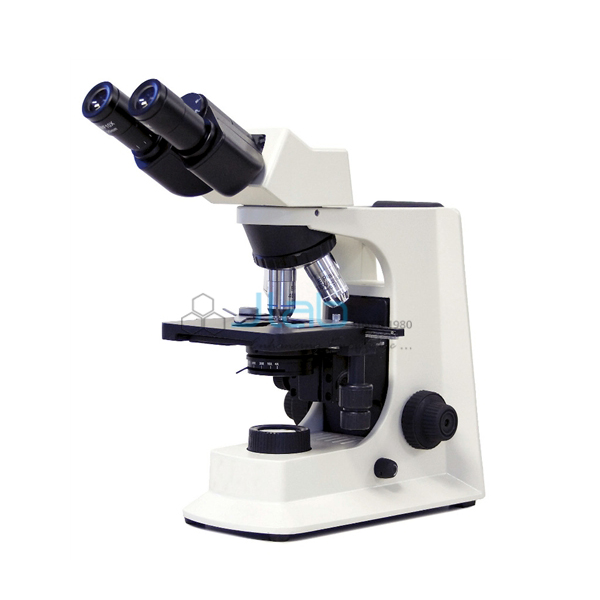

Infinity Corrected Binocular Microscope
Product Code : JA-M-8067
The Infinity Corrected Binocular Microscope (SKU JA-M-8067) is a laboratory microscope supplied by JaincoLab for research, college and clinical teaching labs. Infinity-corrected E Plan achromatic DIN objectives from 4x to 100x oil give 40x to 1000x with the WF10x/20 eyepieces, and they stay parfocal when optical components are added to the light path. The cast aluminium stand carries a handle for moving the microscope.
Specifications
This infinity corrected binocular microscope is listed with the following head, optics, focusing, stage and lighting values.
| Product | Infinity Corrected Binocular Microscope |
| SKU | JA-M-8067 |
| Head | Binocular, tube length unchanged by interpupillary adjustment; inclined 30 degrees, rotates 360 degrees; IPD 50-75 mm |
| Eyepieces | WF10x/20 mm; diopter on left tube; calibrated pointer in one eyepiece |
| Nosepiece | Reversed quadruple, ball bearings, internal click stops |
| Objectives | Infinity-corrected E Plan achromatic DIN 4x/0.10, 10x/0.25, 40xR/0.66, 100xR/1.25 oil (infinity/0.17); 40xR and 100xR retractable |
| Focusing | Low-position coaxial coarse and fine on both sides; coarse stroke 26 mm; fine graduation 2 microns; range 19 mm; tension adjustment |
| Stage | 145 x 140 mm double-layer mechanical stage; travel 76 x 52 mm; two-slide holder |
| Condenser | 1.25 NA Abbe on rack and pinion; iris diaphragm with graduated scale |
| Illumination | 3 W LED with intensity control |
| Stand | Cast aluminium, one-piece arm and base; carrying handle; antifungal treatment |
| Optional, not included | Dark field kit (0.9 NA dry condenser for 4x-40x), polarising kit, 0.1 mm reticule eyepiece |
Uses of the infinity corrected binocular microscope
- Pathology and microbiology teaching slides at 400x and 1000x
- Research and multidisciplinary laboratory slide work
- Dark field or polarised light work with the optional kits
- Measurement with the optional reticule eyepiece
Scope of supply and ordering
One unit is the binocular microscope with two WF10x eyepieces and four objectives. Any optional kits, quantities and delivery are itemised on the quotation.
Frequently asked questions
What does infinity correction mean on this microscope?
The objectives are corrected for an infinite tube length (infinity/0.17), so they stay parfocal when optical components are added to or removed from the light path.
Which accessories can be added?
The listing offers a dark field kit with a 0.9 NA dry condenser for the 4x to 40x objectives, a polarising kit and a 0.1 mm reticule eyepiece; none is included as standard.
How fine is the focusing?
Low-position coaxial knobs on both sides give a 26 mm coarse stroke, fine-focus graduations of 2 microns and a 19 mm focusing range, with tension adjustment against drift.
