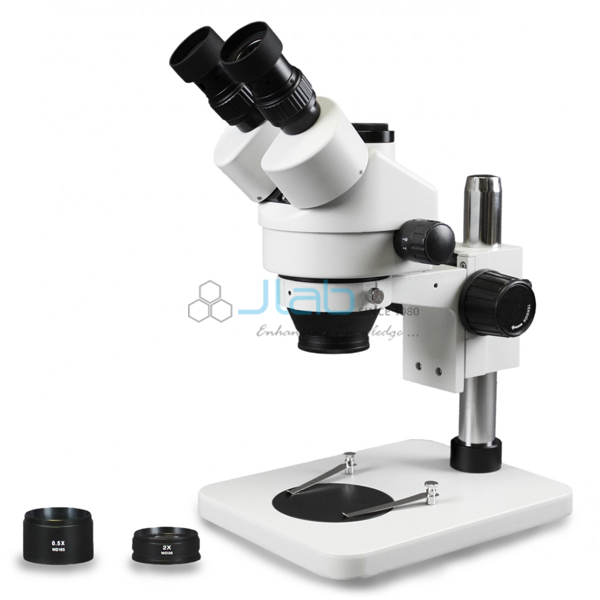

Trinocular Zoom Stereo Microscope
Product Code : JA-M-8136
The Trinocular Zoom Stereo Microscope (SKU JA-M-8136) is a pillar-stand zoom stereo microscope supplied by JaincoLab for laboratory, industrial and teaching work on three-dimensional specimens. Its 0.7x to 4.5x zoom gives 7x to 45x with WF10x eyepieces, a C-mount port takes a camera, and the pillar stand allows up to 8 in of vertical movement for small or large samples.
Specifications
The trinocular zoom stereo microscope is listed with these values; lighting is not built in.
| Product | Trinocular Zoom Stereo Microscope |
| SKU | JA-M-8136 |
| Head | Trinocular, inclined 45 degrees, rotates 360 degrees; IPD 54-76 mm |
| Eyepieces | WF10x/20 mm high eyepoint; +/-6 diopter on both tubes |
| Trinocular port | C-mount ready |
| Zoom | 0.7x-4.5x, zoom ratio 1:6.4 |
| Magnification | 7x-45x; 3.5x-90x with 0.5x and 2x auxiliary lenses |
| Working distance | Optical working distance up to 4 in; up to 8 in vertical movement |
| Focusing | Heavy-duty rack and pinion arm with tension adjustment |
| Stage | Reversible black/white plate with a pair of stage clips |
| Stand | Pillar stand with rectangular table base |
| Light source | Optional |
| Overall size | 15.1 x 14.2 x 9.7 in |
Uses of the trinocular zoom stereo microscope
- Large or tall samples on the pillar stand
- Camera documentation through the C-mount port
- Continuous zoom from 7x to 45x on assemblies and specimens
- Wider or closer views with the 0.5x and 2x auxiliary lenses
Scope of supply and ordering
The listing covers the microscope head, eyepieces, pillar stand and black/white plate. The light source, auxiliary lenses, camera, quantities and delivery are itemised on the quotation.
Frequently asked questions
Does it include a light?
No. The light source is listed as optional, so a ring light or other illuminator is added on the quotation if needed.
What magnification range do the auxiliary lenses give?
With the 0.5x and 2x auxiliary lenses the range extends from 7x-45x to 3.5x-90x.
