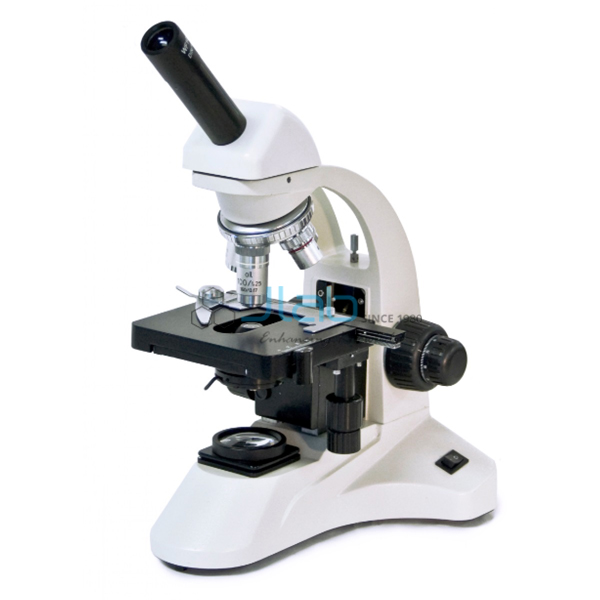

Series Monocular Microscope
Product Code : JA-M-8062
The Series Monocular Microscope (SKU JA-M-8062) is a laboratory microscope supplied by JaincoLab for grade 9 to college biology, built on a one-piece die-cast aluminium arm and base. Achromatic DIN 4x, 10x, 40xR and 100xR oil objectives with a locked-on WF10x eyepiece give 40x to 1000x, making it a monocular microscope with 1000x reach, a built-in mechanical stage and LED light with intensity control.
Specifications
Values from the listing for the optics, focusing, stage, condenser, lighting and frame follow.
| Product | Series Monocular Microscope |
| SKU | JA-M-8062 |
| Head | Monocular, inclined 45 degrees, rotates 360 degrees |
| Eyepiece | Locked-on WF10x with calibrated pointer |
| Nosepiece | 4-position reverse, positive click stops |
| Objectives | Achromatic DIN 4x, 10x, 40xR, 100xR (oil immersion); colour-coded, parcentred, parfocal; 40xR and 100xR retractable |
| Magnification | 40x, 100x, 400x, 1000x |
| Focusing | Coaxial coarse and fine; rack and pinion with slip clutch at both ends; safety rack stop; tension adjustment |
| Stage | Built-in X-Y mechanical stage 12.5 x 11.5 cm, 0.1 mm increments, travel 7.4 x 3 cm, X-Y control torque |
| Condenser | Focusable 1.25 NA Abbe on rack and pinion; iris diaphragm with clear plastic cover and turn-wheel control |
| Illumination | Built-in LED with intensity control; LED life 10,000 hours |
| Power | Three-wire grounded mains cord |
| Frame and size | One-piece die-cast aluminium arm and base; 14.5 in high; base 9.2 x 8 in |
Where the Series Monocular Microscope is used
- Stained bacteria and blood smears at 1000x under oil
- Cell and tissue slides at 400x in grade 9 to college biology
- Locating and returning to slide positions with the 0.1 mm stage scales
- Routine laboratory slide examination
Scope of supply and ordering
One unit is one monocular microscope with the eyepiece and four objectives listed. Quantity, packing and delivery date are confirmed on the quotation.
Frequently asked questions
What stage does the Series Monocular Microscope have?
A built-in X-Y mechanical stage of 12.5 x 11.5 cm with 0.1 mm increments, a cross travel of 7.4 x 3 cm and adjustable X-Y control torque.
Can it be used at 1000x?
Yes. The 100xR oil immersion objective with the WF10x eyepiece gives 1000x, and the focusable 1.25 NA Abbe condenser with iris diaphragm supports that magnification.
What does the tension adjustment do?
It sets the stiffness of the coarse focus so the stage does not drift out of focus under its own weight.
