Hydraulic Resilient Modulus Testing System
Product Code : JA-ST-9807

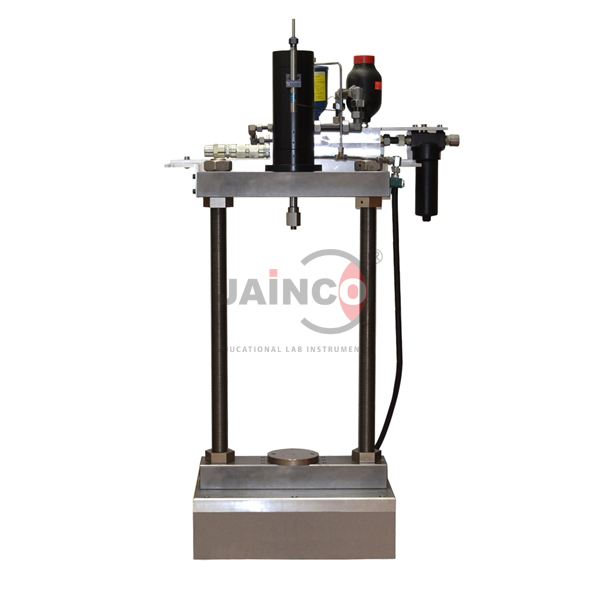

The Hydraulic Resilient Modulus Testing System (SKU JA-ST-9807) determines the resilient modulus and permanent deformation of unbound base and sub-base pavement materials. A beam-mounted hydraulic actuator on an axially stiff load frame applies dynamic cyclic axial loads to a specimen confined in a triaxial cell, and axial deformation can be measured with anything from local LVDTs to external linear potentiometers. It is supplied by JaincoLab for highway and pavement research laboratories.
Specifications
The system is made up of these elements:
| Product | Hydraulic Resilient Modulus Testing System |
| SKU | JA-ST-9807 |
| Tests | Resilient modulus and permanent deformation |
| Materials | Unbound base and sub-base pavement materials |
| Load frame | Axially stiff load frame |
| Actuator | Beam-mounted hydraulic actuator applying dynamic cyclic axial loads |
| Confinement | Triaxial cell |
| Axial deformation measurement | Options from localised LVDTs to external linear potentiometers |
Applications of the resilient modulus testing system
Resilient modulus is the stiffness input used in pavement design, so the system serves:
- Characterising granular base and sub-base materials for flexible pavement design
- Measuring permanent deformation of unbound layers under repeated loading
- Evaluating recycled or stabilised aggregates for road bases
- Postgraduate research in highway and transportation engineering
Scope of supply and ordering
Choose the axial deformation measurement option, local LVDTs or external linear potentiometers; the listing covers the load frame, hydraulic actuator and triaxial cell. Quantities, packing and delivery lead time are stated on each quotation.
Frequently asked questions
Which properties does the system measure?
It determines the resilient modulus and the permanent deformation of unbound base and sub-base pavement materials.
How is the cyclic load applied?
A beam-mounted hydraulic actuator on an axially stiff load frame applies dynamic cyclic axial loads, while a triaxial cell confines the specimen.
How is axial deformation measured?
Options range from localised LVDTs on the specimen to external linear potentiometers.
Related products
- Cyclic and Static Triaxial Apparatus
- Laboratory California Bearing Ratio Test Apparatus
- Plate Bearing Test Apparatus
- Load Frames
More items of this type are listed in the soil testing equipment range.
Request a quote
Enquiries for the Hydraulic Resilient Modulus Testing System can be sent with the quantity needed through our contact page. Institutions and contractors buying under a tender can also reach us via the tenders page.
