Vane Shear Test Apparatus
Product Code : JA-ST-9809

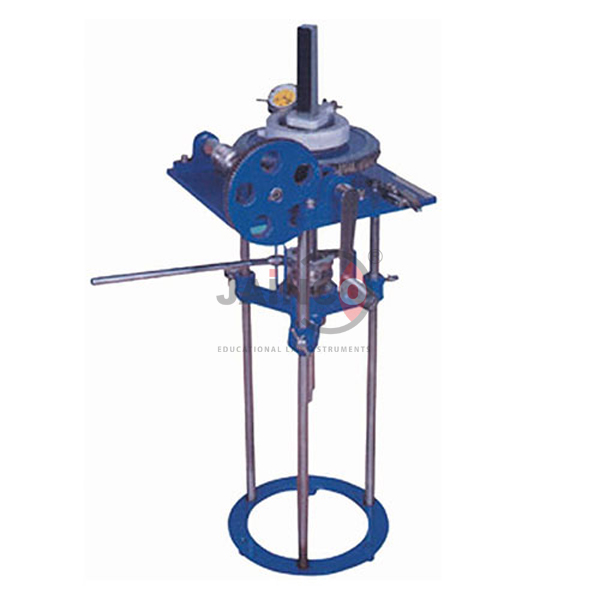

The Vane Shear Test Apparatus (SKU JA-ST-9809) measures the in-place shearing resistance of saturated cohesive deposits by turning a vane at the bottom of a bore hole. A torque applicator assembly on a base turns the rod string through a crank and a gear wheel marked in degrees; the torque passes through a cut torque ring whose deformation is read on a dial gauge and converted to kg-cm of torque with the calibration curve supplied.
Specifications
The apparatus is made up of these parts:
| Product | Vane Shear Test Apparatus |
| SKU | JA-ST-9809 |
| Test | Field vane shear test from the bottom of a bore hole |
| Soils | Saturated cohesive deposits |
| Torque applicator | Assembly mounted on a base, driven by a crank |
| Gear wheel | Marked in degrees, holding the torque ring |
| Torque measurement | Cut torque ring with dial gauge |
| Rotation reading | Pointer registering vane rotation |
| Rod attachment | Holds the string of rods securely |
| Stand | Detachable, to anchor the instrument |
| Calibration | Curve converting dial gauge readings to kg-cm of torque |
Applications of the field vane shear test apparatus
- In-situ shear strength of soft clays during site investigation
- Foundation and embankment design on saturated cohesive soils
- Strength checks at several depths in the same bore hole
- Field practicals in geotechnical engineering courses
Scope of supply and ordering
The listing covers the torque applicator assembly with dial gauge, pointer, rod attachment, detachable stand and calibration curve; state the vane size and the length of rods required. Order quantity, packing and delivery time are set out on each quotation.
Frequently asked questions
How is the torque measured?
The torque ring deforms as torque is applied and the dial gauge shows the deformation, which the supplied calibration curve converts to kg-cm of torque.
Which soils is the apparatus meant for?
It is designed for vane shear tests from the bottom of a bore hole in saturated cohesive deposits.
How is the instrument held steady during the test?
A detachable stand anchors the instrument, and an attachment holds the string of rods securely.
Related products
- Laboratory Vane Shear Apparatus, Motorised
- Standard Penetration Test Set
- Static Cone Penetrometer
- Unconfined Compression Tester Proving Ring Type
See the soil testing equipment range for other items in this family.
