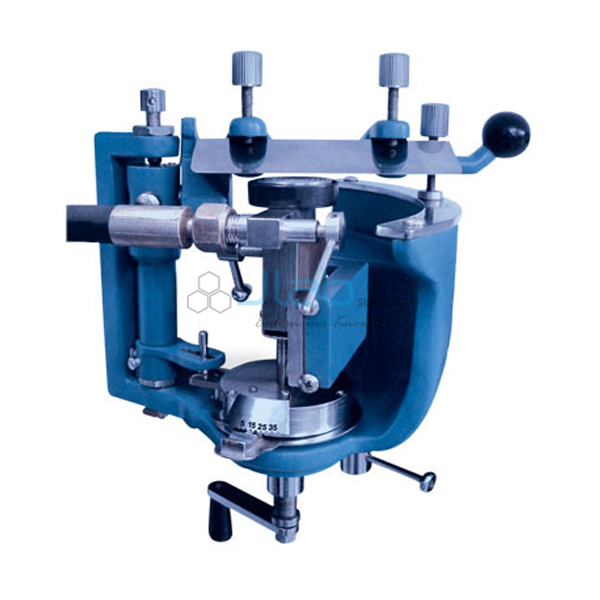

Freezing Microtome (Erma Type)
Product Code : JA-M-6587
The Freezing Microtome (Erma Type), SKU JA-M-6587, cuts thin to semi-thin sections of fresh, frozen tissue and also semi-thin sections of industrial materials such as textiles, paper, leather, soft plastics, rubber, powders, pastes and food products, frozen with its carbon dioxide attachment. This freezing microtome cuts sections up to 40 microns in 5 micron steps on a 35 mm freezing stage and clamps to the side of a standard table. JaincoLab manufactures it for histology, pathology, botany and materials laboratories.
Specifications
The microtome has a 35 mm diameter freezing stage, a feed range of 5 to 40 microns in 5 micron steps and a total feed excursion of 25 mm.
| Product | Freezing Microtome (Erma Type) |
| SKU | JA-M-6587 |
| Freezing stage | 35 mm diameter |
| Feed range | 5-40 microns, in 5 micron steps |
| Total feed excursion | 25 mm |
| Mounting | Table clamp for the side of a standard table |
| Freezing | Carbon dioxide (CO2) freezing attachment and stage |
| Supplied with | 120 mm razor with back and handle, honing plate, CO2 freezing attachment and stage, oil can, spanner for the CO2 cylinder |
Applications of the freezing microtome
Freezing the specimen with CO2 lets fresh material be sectioned quickly without paraffin embedding.
- Frozen sections of fresh tissue in histology and pathology teaching
- Plant sections in botany practicals
- Sections of textiles, paper, leather, rubber and soft plastics
- Sections of food products, powders and pastes
Scope of supply and ordering
The listing covers the freezing microtome with table clamp, 120 mm razor with back and handle, honing plate, CO2 freezing attachment and stage, oil can and spanner. The CO2 cylinder is not part of the listing. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of microtomes and the delivery destination. Single units and bulk institutional and tender quantities are supplied.
Frequently asked questions
What section thickness can it cut?
Sections up to 40 microns, set in 5 micron steps from 5 microns.
How is the specimen frozen?
With the carbon dioxide freezing attachment and stage, connected to a CO2 cylinder.
Is a razor included?
Yes. A 120 mm razor with back and handle and a honing plate are supplied.
Related products
This microtome is listed in the JaincoLab microtomes and histology range.
Request a quote
To order the Freezing Microtome (Erma Type), send the quantity and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-M-6587. Institutions and contractors buying under a tender can also reach us via the tenders page.
