Digital Microtome
Product Code : JA-M-2330

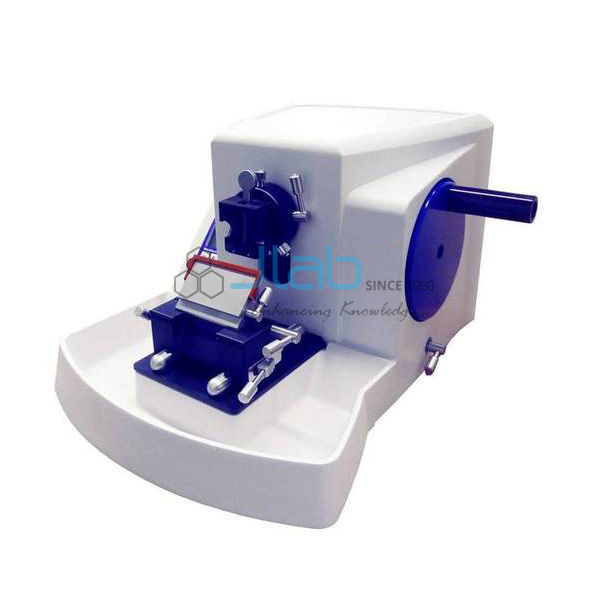

The Digital Microtome (SKU JA-M-2330) cuts tissue sections down to 1 micron, with a cam drive feed set from 1 to 50 microns in one micron steps on a feed indicator at the front and a knurled knob at the back. This digital microtome has a heavy cast iron base under a full swing protective cover, a digital scale, a reversing handle, ball bearing slides and a pull-up feed. JaincoLab manufactures it for histology, pathology and biology teaching laboratories.
Specifications
The feed runs from 1 to 50 microns in 1 micron steps, with an independent feed mechanism and automatic safety device, a universal knife holder with lateral movement and a universal vice type object holder.
| Product | Digital Microtome |
| SKU | JA-M-2330 |
| Feed range | 1-50 microns, in 1 micron steps |
| Feed drive | Cam drive; indicator in front, setting knob at back |
| Base | Heavy cast iron |
| Cover | Full swing protective cover |
| Feed mechanism | Independent, with automatic safety device |
| Knife holder | Universal, with lateral movement |
| Object holder | Universal vice type |
| Features | Digital scale, reversing handle, ball bearing slides, pull-up feed |
| Accessories | Razor 120 mm with back and handle in box; universal vice; universal razor holder; honing stone; oil can; dust cover; object holders (set of three); disposable blade holder with 5 disposable blades; operating manual |
Applications of the digital microtome
Using the whole length of the knife edge, with a vice that centres the block, gives consistent thin sections for stained slides.
- Paraffin sections for histology and pathology practicals
- Serial sections for medical and veterinary teaching
- Zoology and botany slide preparation
- Research sectioning of tissues
Scope of supply and ordering
The listing covers the digital microtome with 120 mm razor with back and handle, universal vice, universal razor holder, honing stone, oil can, dust cover, three object holders, a disposable blade holder with 5 blades and an operating manual. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of microtomes and the delivery destination. Single units and bulk institutional and tender quantities are supplied.
Frequently asked questions
What feed range does it have?
1 to 50 microns, set in 1 micron steps.
Can disposable blades be used?
Yes. A disposable blade holder with 5 disposable blades is supplied along with a 120 mm razor.
What is it built on?
A heavy cast iron base with a full swing protective cover.
Related products
This microtome is listed in the JaincoLab microtomes and histology range.
Request a quote
To order the Digital Microtome, send the quantity and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-M-2330. Buying under a laboratory tender? Use our tenders page.
