Forced Vortex Flow
Product Code : JA-ELA-5513

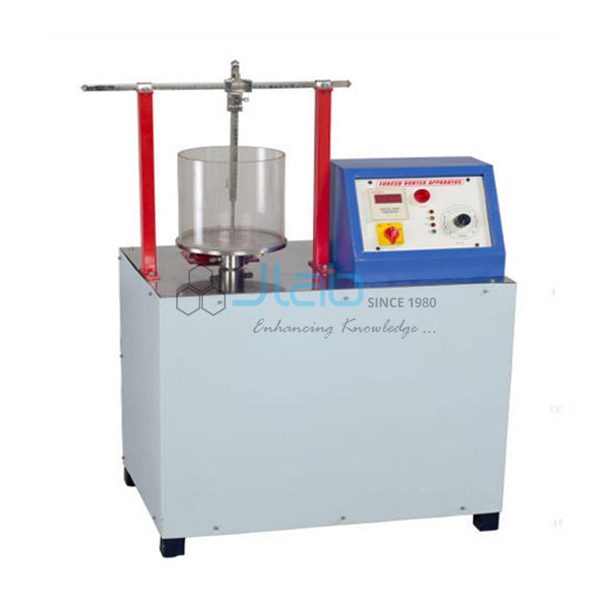

The Forced Vortex Flow apparatus (SKU JA-ELA-5513) is a fluid mechanics experiment made by JaincoLab for demonstrating rotational flow. A cylinder of water is rotated about its axis by a motor; once conditions are steady every particle moves with the same angular velocity, with no relative motion between particles, and the free surface takes up a parabolic profile. The streamlines are concentric circles, and total energy is constant along each streamline but changes from one streamline to the next.
Specifications
The utilities and working arrangement listed for the forced vortex apparatus are shown below.
| Product | Forced Vortex Flow |
| SKU | JA-ELA-5513 |
| Flow type | Forced (rotational) vortex in a motor-driven cylinder |
| Speed | Changed between runs from the motor drive |
| Profile measurement | Pitot-static tube traversed along a radial line just beneath the water surface |
| Datum | Surface elevation at the reference radius r0 |
| Power supply | Single phase, 220 V, 50 Hz, 5 A with earth |
| Other utilities | Water supply and drain |
Experiment procedure
- Fill the cylinder with water to about half its height
- Rotate it at a constant, fairly fast speed and measure the speed of rotation
- At steady state, read the surface profile with the Pitot-static tube along a radius, taking the elevation at r0 as datum
- Change the motor speed and repeat the readings for a second run
Scope of supply and ordering
The apparatus is supplied ready for a single-phase 220 V supply with water connection and drain; quantity and packing are confirmed on the quotation.
Frequently asked questions
What shape does the water surface take?
A parabola, once the cylinder is turning steadily.
How are the surface readings taken?
With a Pitot-static tube traversed along a radial line just beneath the water surface.
What should be avoided when running it?
Running the pump at low voltage, below 180 volts.
