Experimental Flume
Product Code : JA-FMAHLE-9981

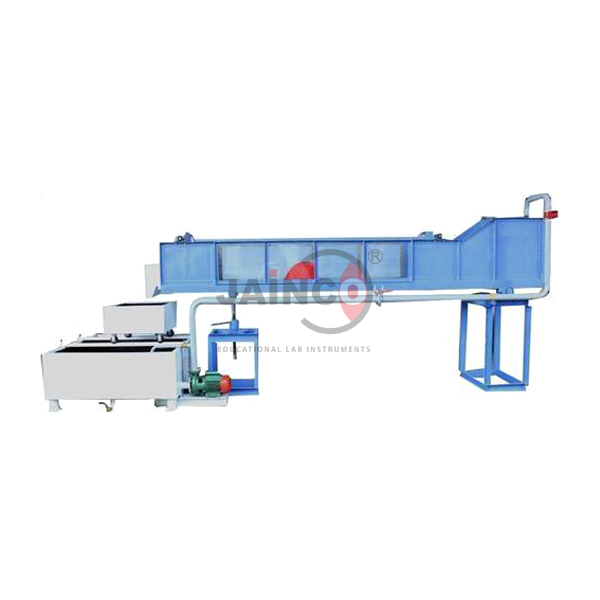

The Experimental Flume (SKU JA-FMAHLE-9981) is an open channel flume for demonstrating the basic principles of open channel flow and testing models from hydraulic engineering. It has a 2.5 m experimental section with tempered glass side walls, a flow-optimised inlet and its own closed water circuit. JaincoLab supplies this experimental flume to civil engineering colleges and polytechnics for hydraulics and fluid mechanics practicals.
Specifications
The experimental section is 86 mm wide and 300 mm high, 2.5 m long (5 m with an extension element), inclinable from -0.5% to +3%; the circuit has a 280 litre tank, a 1.02 kW pump (max. head 13.7 m, max. flow 22.5 m³/h) and a 0 to 10 m³/h flow sensor.
| Product | Experimental Flume |
| SKU | JA-FMAHLE-9981 |
| Flow cross-section (W x H) | 86 x 300 mm |
| Experimental section length | 2.5 m; 5 m with an extension element |
| Side walls | Tempered glass |
| Inclination | Smoothly adjustable, -0.5% to +3% |
| Model fixing | 10 evenly spaced threaded holes in the bottom, also for water level measurement by pressure |
| Tank | 280 litres |
| Pump | Power consumption 1.02 kW; max. head 13.7 m; max. flow rate 22.5 m³/h |
| Flow measurement | Flow rate sensor, 0-10 m³/h, with manual flow adjustment |
| Wetted parts | Corrosion-resistant materials |
Applications of the experimental flume
The experimental flume is used to study uniform and non-uniform open channel flow and the behaviour of weirs, gates and other hydraulic structures fitted in the glass-walled section, with flow rate and slope set by the operator, in civil engineering hydraulics practicals.
- Demonstrating the basic principles of open channel flow
- Testing weirs, gates and other hydraulic engineering models, available as accessories
- Measuring water levels along the section through the bottom tappings
- Studying the effect of bed slope and flow rate on depth
- Hydraulics practicals in civil engineering degree and diploma courses
Scope of supply and ordering
The listing covers the experimental flume with inlet and outlet elements, 2.5 m glass-walled section and closed water circuit with tank, pump, flow sensor and manual flow adjustment. Models, the extension element for 5 m and other accessories are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of units and the delivery destination. The flume is supplied by JaincoLab with the models ordered, for colleges and tender orders.
Frequently asked questions
What is the channel cross-section?
86 mm wide by 300 mm high, with tempered glass side walls.
Can the length be extended?
Yes. The 2.5 m section can be extended to 5 m with an extension element, confirmed on the quotation.
Does it need a separate hydraulics bench?
No. It has its own closed water circuit with a 280 litre tank, pump and flow rate sensor.
Related products
Flumes, weirs and open channel models are listed in the JaincoLab fluid mechanics lab equipment range.
Request a quote
To order the Experimental Flume, send the quantity and delivery destination through the JaincoLab contact page or email [email protected]. Tender and project enquiries can be sent through the tenders page.
