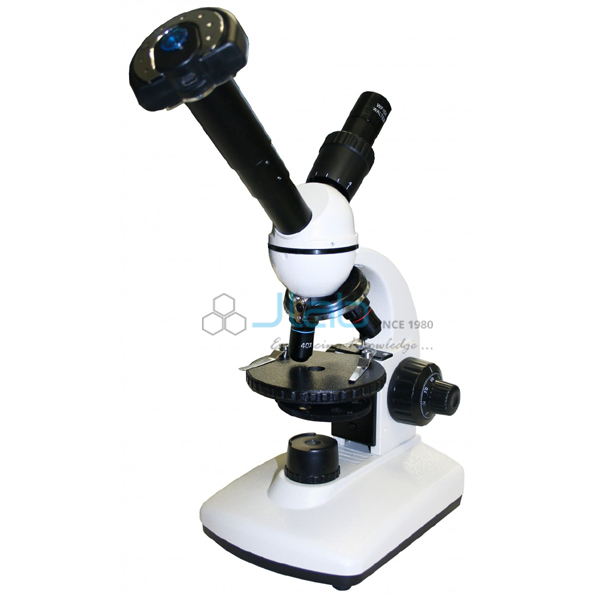

Dual View with Digital Camera Coaxial Focusing Microscope
Product Code : JA-M-8054
The Dual View with Digital Camera Coaxial Focusing Microscope (SKU JA-M-8054) is a cast metal student microscope supplied by JaincoLab that pairs coaxial coarse and fine focusing with a digital camera in the dual view head, model DG1.3 (1.3 MP) or DG3.0 (3.0 MP). Parfocal achromatic 4x, 10x and retractable 40x objectives with a locked-on WF10x eyepiece give 40x, 100x and 400x, making it a coaxial focusing camera microscope for classes that record slide images.
Specifications
Optical, focusing and camera values from the listing are set out in the table.
| Product | Dual View with Digital Camera Coaxial Focusing Microscope |
| SKU | JA-M-8054 |
| Head | Dual view head with digital camera, inclined 45 degrees, rotates 360 degrees |
| Camera models | DG1.3: 1/3 in CMOS sensor, 3.6 x 3.6 micron pixels, max. 1280 x 1024. DG3.0: 1/2 in CMOS sensor, 3.18 x 3.18 micron pixels, max. 2048 x 1536 |
| Camera frame rate | 30 fps at 640 x 480 |
| White balance | Manual or auto |
| Sensitivity | 1.0 V/lux-sec |
| Image format | JPG or BMP |
| Eyepiece | Locked-on WF10x with pointer |
| Nosepiece | 3-position reverse nosepiece with click stops |
| Objectives | Achromatic 4x, 10x, 40xR (retractable); colour-coded, parcentred and parfocal |
| Magnification | 40x, 100x, 400x |
| Focusing | Coaxial coarse and fine; rack and pinion with slip clutch; safety rack stop |
| Stage | 3.5 in round gliding stage, 360-degree rotation, clips |
| Illumination | Built-in LED with on/off switch; 6-hole rotating disc diaphragm |
| Power | Corded, three-wire grounded cord |
| Size | 12 in high; base 6.5 x 5.25 in; all-metal |
Uses of the coaxial focusing camera microscope
- Recording images of stained slides at 400x after fine focusing
- Group discussion of one captured field of view
- Practical records saved as JPG or BMP files
- Routine school and college slide work
Scope of supply and ordering
A unit is one microscope with the DG1.3 or DG3.0 camera fitted, as chosen at order. Software, connection cables, quantities and delivery are stated on the quotation.
Frequently asked questions
How does this model differ from the Digital Camera Microscope with Dual View?
It adds coaxial coarse and fine focusing and parfocal objectives. The camera options and the rest of the optics are listed the same way for both models.
Which camera model gives the higher resolution?
The DG3.0 gives 2048 x 1536 maximum resolution on a 1/2 in CMOS sensor, against 1280 x 1024 on the 1/3 in sensor of the DG1.3. Both record 30 frames per second at 640 x 480.
