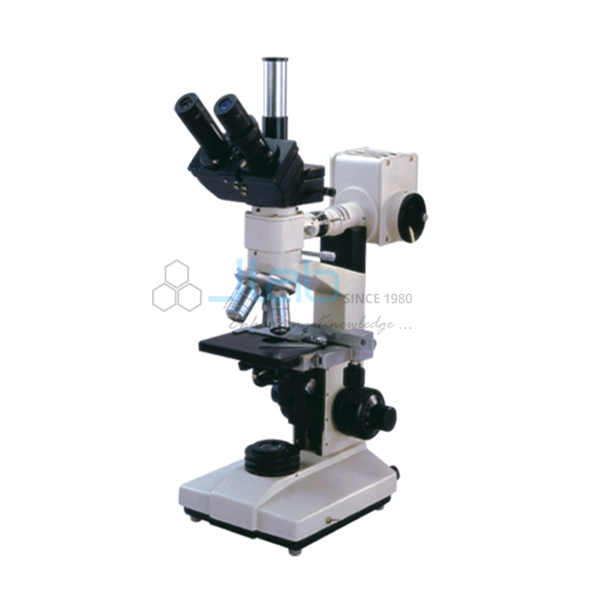

Universal Trinocular Metallurgical Microscope
Product Code : JA-M-989
The Universal Trinocular Metallurgical Microscope (SKU JA-M-989) is a trinocular reflected-light microscope whose vertical illuminator has both a field diaphragm and an aperture diaphragm, giving finer control of contrast on polished specimens. A P7 eyepiece for microphotography is listed with paired H6x - WF10x eyepieces, and DIN M4x to M40x objectives sit on a quadruple nosepiece. Metallurgy departments and research laboratories use this universal trinocular metallurgical microscope for detailed observation and image recording.
Specifications
The listed specification is a 45-degree trinocular head, coaxial focusing knobs on both sides, a quadruple nosepiece, a large coaxial stage, a 6 V 20 W halogen vertical illuminator with field and aperture diaphragm, filter slots and bulb centring, achromatic DIN M4x, M10x and M40x objectives and a P7 eyepiece.
| Product | Universal Trinocular Metallurgical Microscope |
| SKU | JA-M-989 |
| Head | Trinocular, inclined at 45 degrees |
| Focusing | Coaxial focusing knobs on both sides |
| Nosepiece | Quadruple revolving, accurate centring, positive click stops |
| Stage | Large coaxial mechanical stage for X-Y movement |
| Illumination | Bright field vertical illuminator, 6 V 20 W halogen; field and aperture diaphragm, filter slots, bulb centring |
| Objectives | Achromatic DIN M4x, M10x, M40x |
| Eyepieces | H6x - WF10x (paired); P7 for microphotography |
Applications of the universal trinocular metallurgical microscope
The two diaphragms let the user set the illuminated field and the contrast separately, which helps when examining etched grain boundaries, inclusions and coatings, and the trinocular port with P7 eyepiece supports photography of those features.
- Examining etched grain boundaries and inclusions
- Microphotography of metal and alloy samples
- Coating and surface layer inspection
- Metallurgy department practicals and projects
- Research and testing laboratory training
Scope of supply and ordering
One unit is one universal trinocular metallurgical microscope with the listed head, stage, halogen vertical illuminator, three DIN objectives, paired eyepieces and P7 eyepiece. A camera, adapter, spare bulbs, accessories and quantities are confirmed on the quotation.
The quotation confirms the minimum order quantity, lead time and packing for the quantity and delivery destination you give. Orders from individual schools, bulk purchases for colleges and education programmes, and tender requirements are all supplied, with export to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What makes this model different from the trinocular upright JA-M-988?
Its vertical illuminator has both field and aperture diaphragms, and a P7 microphotography eyepiece is listed.
Which objectives are included?
Achromatic DIN metallurgical objectives M4x, M10x and M40x.
Is a camera included?
A P7 eyepiece for microphotography is listed; the camera and adapter are confirmed on the quotation.
