Projection Microscopes
Product Code : JA-M-964

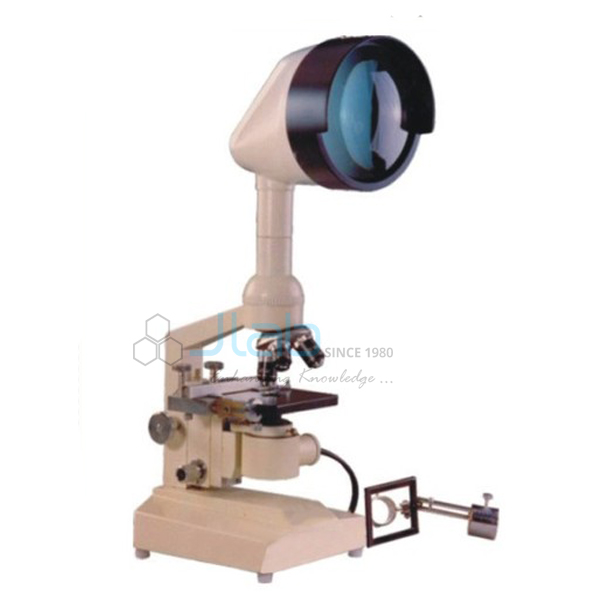

The Projection Microscopes listing (SKU JA-M-964) describes a monocular microscope that also throws its image onto a 150 mm diameter glass projection screen, so a teacher can show a slide to a small group without each student using the eyepiece. It has a 160 mm fixed straight tube, a graduated mechanical stage and a 20 W halogen lamp. Schools and colleges use this projection microscope for classroom demonstrations in biology practicals.
Specifications
The listing specifies a monocular fixed straight tube of 160 mm, a triple revolving nosepiece with centring and click stops, a 135 x 120 mm mechanical stage with 50 x 75 mm coaxial movement and vernier, a 20 W halogen lamp for 220/110 V, and a 150 mm glass screen.
| Product | Projection Microscopes |
| SKU | JA-M-964 |
| Body | Monocular fixed straight tube, tube length 160 mm |
| Nosepiece | Triple revolving, accurate centring, positive click stops |
| Stage | Mechanical stage 135 x 120 mm; low coaxial X-Y drive, 50 x 75 mm cross movement, graduated vernier |
| Illumination | 20 W halogen lamp, 220/110 V; lamp slots for natural cooling |
| Objectives | Achromatic 4x, 10x, 40x SL |
| Eyepieces | Huygenian 10x and 15x |
| Screen | 150 mm diameter glass projection screen |
Applications of the projection microscope in the classroom
A projection microscope lets several students look at the same specimen at once: the teacher focuses a prepared slide and the enlarged image appears on the glass screen, which suits explanation of cell structure, tissues and micro-organisms during class practicals.
- Teacher demonstrations of prepared slides
- Group viewing of cells and tissues
- Biology practicals in secondary schools
- Introductory microscopy in college labs
- Comparing specimens during class discussion
Scope of supply and ordering
One unit is one projection microscope with the listed tube, stage, halogen lamp, three objectives, two Huygenian eyepieces and the 150 mm glass screen. Spare lamps, accessories and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the quantity ordered and the delivery destination. JaincoLab supplies single-school orders as well as bulk requirements for schools, colleges and education projects, and exports to buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
How large is the projected image?
The image is shown on a 150 mm diameter glass projection screen.
Which objectives and eyepieces are supplied?
Achromatic 4x, 10x and 40x SL objectives with Huygenian 10x and 15x eyepieces.
What power supply does the lamp need?
The 20 W halogen lamp is listed for 220/110 V mains.
