Distortion Factor Meter
Product Code : JA-TAMI-1017

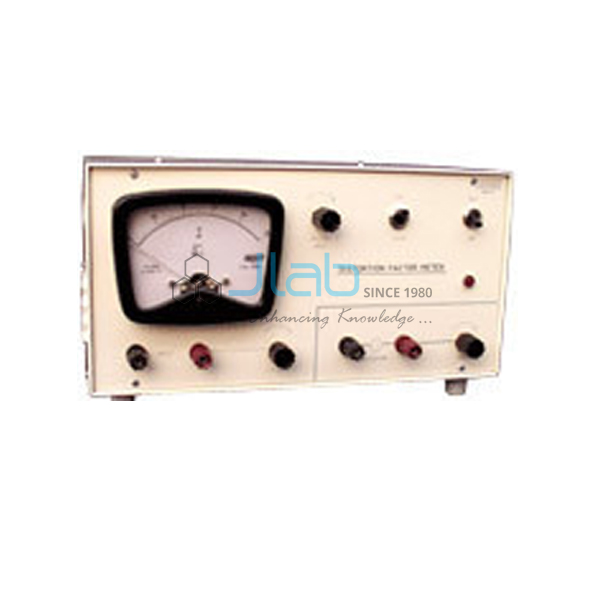

The Distortion Factor Meter (SKU JA-TAMI-1017) measures how much unwanted distortion an amplifier adds to a signal. A pure sine wave from the built-in generator is fed to the amplifier, the amplified output is passed through the filter circuit that separates the original tone from the distortion products, and what remains is read on the meter directly as a percentage. It covers the audio range from 20 Hz to 20 kHz and works from 220 V, 50 Hz mains.
Specifications
The instrument is described in the listing as follows:
| Product | Distortion Factor Meter |
| SKU | JA-TAMI-1017 |
| Measurement | Distortion of the amplified signal, read as a percentage |
| Frequency range | 20 Hz to 20 kHz |
| Built-in sections | Sine-wave generator, filter circuit and meter |
| Supply | 220 V, 50 Hz |
Measurements it is used for
- Finding the percentage distortion of audio amplifiers built or tested in electronics practicals
- Comparing distortion at different signal levels and frequencies across 20 Hz to 20 kHz
- Checking the effect of negative feedback on amplifier distortion
- Testing amplifier stages alongside a power output meter and AC millivoltmeter
Scope of supply and ordering
Each order line covers one meter with its generator and filter sections. Test leads, quantities and packing are set out on the quotation.
Frequently asked questions
What does the Distortion Factor Meter measure?
The unwanted distortion an amplifier adds to a pure sine wave, shown on the meter as a percentage.
Over what frequency range does it work?
20 Hz to 20 kHz.
Is a separate sine-wave source needed?
No, a sine-wave generator is built in, together with the filter circuit and meter.
What mains supply does it use?
220 V, 50 Hz.
