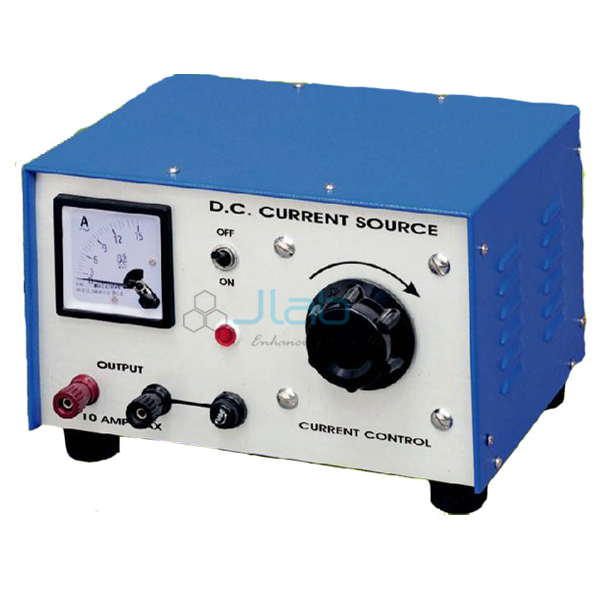

Adjustable D.C. Current Source
Product Code : JA-SI-8050
The Adjustable D.C. Current Source (SKU JA-SI-8050) is a mains-operated supply that delivers a continuously adjustable direct current of up to 10 A for college physics and electrical laboratories. A variac feeds a step-down transformer, bridge rectifier and filter circuit, the output of roughly 0-10 V DC is set to give the current the external load needs, and a built-in 0-10 A ammeter shows the current on the front panel.
Specifications
Electrical values and construction from the listing:
| Product | Adjustable D.C. Current Source |
| SKU | JA-SI-8050 |
| Input | 230 V AC mains, 50 Hz |
| DC output | Approx. 0-10 V, continuously adjustable, giving 0-10 A depending on the external load |
| Current meter | Built-in ammeter, 0-10 A |
| Circuit | Variac, step-down transformer, bridge rectifier and filter circuit |
| Output terminals | Two heavy brass terminals |
Where it is used
- Physics practicals that need a steady, variable direct current, such as magnetic field and electromagnet work
- Electrical and electronics laboratory experiments in engineering colleges
- Current-dependent measurements and meter checks in research laboratories
Scope of supply and ordering
One unit is supplied per order line, with its built-in ammeter and output terminals. Leads, quantities and packing are confirmed on the quotation.
Frequently asked questions
What current range does the Adjustable D.C. Current Source give?
A continuously adjustable direct current of 0-10 A, depending on the external load.
How is the current read?
On the built-in 0-10 A ammeter.
What mains supply does it need?
230 V AC, 50 Hz.
What is inside the unit?
A variac, a step-down transformer, a bridge rectifier and a filter circuit, with the output taken from two heavy brass terminals.
