Biasing of Transistor BJT
Product Code : JA-AK-1124

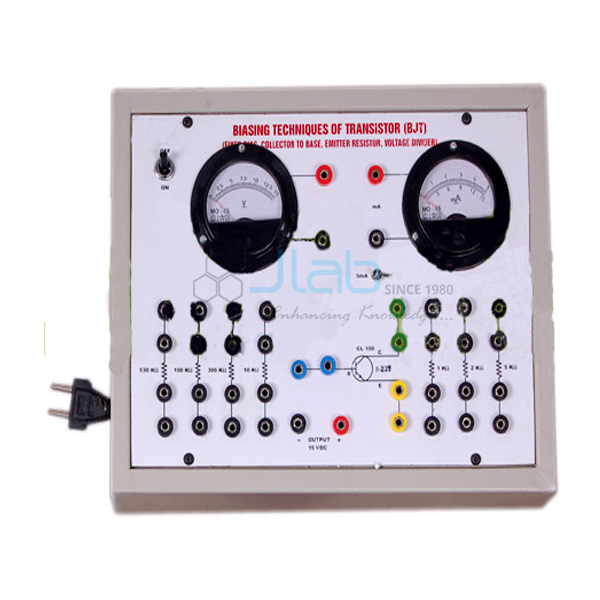

The Biasing of Transistor BJT apparatus (SKU JA-AK-1124) lets students set up and compare the four standard ways of biasing a bipolar junction transistor: fixed bias, collector-to-base bias, emitter resistor bias and voltage divider bias. One NPN transistor, a built-in regulated DC power supply and two meters for voltage and current are housed in one unit, with the bias resistances wired inside and the connections brought out to terminals.
Specifications
Circuits and parts as listed in the product data:
| Product | Biasing of Transistor BJT |
| SKU | JA-AK-1124 |
| Bias circuits | Fixed bias, collector-to-base bias, emitter resistor bias, voltage divider bias |
| Transistor | One NPN transistor |
| Power supply | Built-in regulated DC |
| Meters | Two, for voltage and current |
| Connections | Resistances wired internally, connections on terminals |
| Size | 8 x 6 x 4 in |
Scope of supply and ordering
The unit comes complete with its supply, transistor and meters; patch leads, quantities and packing are stated on the quotation.
