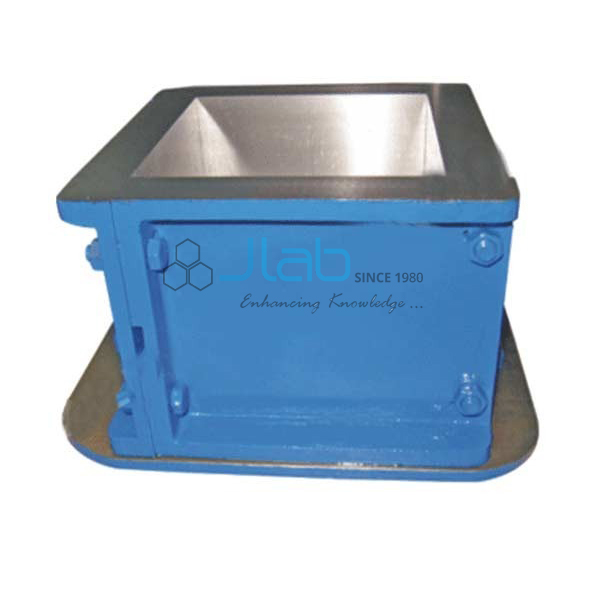

Cube Moulds
Product Code : JA-STE-3413
Cube moulds (SKU JA-STE-3413) are used to cast mortar and concrete cubes for compressive strength testing. JaincoLab makes them in cast iron in sizes from 50 mm to 150 mm, including 70.6 mm moulds for cement mortar and 150 mm moulds in economy, standard and heavy duty grades, with all sizes also available in mild steel. Larger sizes of 200 to 600 mm are made on request for special testing.
Specifications
Cube moulds are listed in cast iron for 50, 70.6, 75, 100 and 150 mm cubes, with 70.6 mm versions with a loose base plate in cast iron or mild steel, a heavy duty 100 mm version and economy, standard and heavy duty 150 mm versions; every size is also offered in mild steel.
| Product | Cube Moulds |
| SKU | JA-STE-3413 |
| Cast iron sizes | 50 mm; 70.6 mm; 75 mm; 100 mm; 150 mm |
| 70.6 mm options | Cast iron; cast iron with loose base plate; mild steel with loose base plate |
| 100 mm options | Standard; heavy duty (H.D.M.) |
| 150 mm options | Economy; standard; heavy duty |
| Mild steel | All listed sizes available in mild steel |
| Larger sizes | 200, 300, 450 and 600 mm on request |
| Optional tamping rod | Mild steel, 16 mm diameter x 600 mm, rounded end |
Applications of cube moulds for concrete and mortar
Cube moulds are filled with fresh mortar or concrete, compacted, cured and stripped to give cubes that are crushed in a compression testing machine, which is the routine test of cement and concrete strength.
- 70.6 mm mortar cubes for cement compressive strength
- 100 mm and 150 mm concrete cubes for concrete strength
- Concrete mix design trials and quality control
- Concrete technology practicals in civil engineering and polytechnic courses
- Site laboratories and ready-mix plants
Scope of supply and ordering
The listing covers cube moulds in the sizes and materials above; the tamping rod is optional. Sizes, grades, materials and quantities are selected for each order and confirmed on the quotation.
MOQ, lead time and packing for cube moulds are confirmed on each quotation for the sizes, grades, quantity and delivery destination. Single moulds, laboratory sets and bulk quantities for construction projects are supplied, with export to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Which cube sizes are available?
Cast iron moulds for 50, 70.6, 75, 100 and 150 mm cubes, all also in mild steel, with 200 to 600 mm sizes on request.
Which mould is used for cement mortar cubes?
The 70.6 mm mould, available in cast iron, cast iron with loose base plate or mild steel with loose base plate.
Are different grades of 150 mm mould offered?
Yes. Economy, standard and heavy duty 150 mm moulds are listed.
