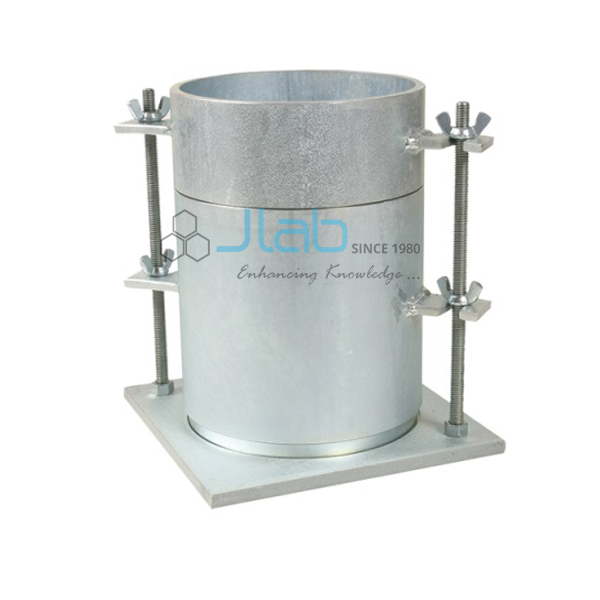

Compaction Mould
Product Code : JA-STE-3415
The compaction mould (SKU JA-STE-3415) is the standard 1000 ml mould used in the light compaction (Proctor) test to find the optimum moisture content and maximum dry density of soil. It has an internal diameter of 100 mm and a height of 127.3 mm and is made in mild steel and gun metal for strength and corrosion resistance. JaincoLab makes the mould for soil mechanics laboratories.
Specifications
The compaction mould has a 100 mm internal diameter, a height of 127.3 mm and a volume of 1000 ml, and is made from mild steel and gun metal; collar, base plate and rammer details are confirmed on the quotation.
| Product | Compaction Mould |
| SKU | JA-STE-3415 |
| Internal diameter | 100 mm |
| Height | 127.3 mm |
| Volume | 1000 ml |
| Material | Mild steel and gun metal |
Applications of the 1000 ml compaction mould
The 1000 ml compaction mould is filled with soil in layers at different water contents and compacted with a rammer, and the dry densities obtained give the compaction curve, optimum moisture content and maximum dry density.
- Light compaction (Proctor) test on soils
- Optimum moisture content and maximum dry density
- Specification of compaction for embankments and sub-grades
- Soil mechanics practicals in civil engineering and polytechnic courses
- Site and highway laboratories
Scope of supply and ordering
The listing covers the 1000 ml compaction mould. Collar, base plate, rammer and extruder are not described in the product data and are confirmed on the quotation with quantities.
MOQ, lead time and packing for the compaction mould are confirmed on each quotation for the quantity and delivery destination. Single moulds and laboratory sets are supplied, including export to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What are the mould dimensions?
100 mm internal diameter and 127.3 mm height, giving a volume of 1000 ml.
What is it made of?
Mild steel and gun metal.
Is a rammer included?
The rammer, collar and base plate are not described in the listing; ask for them and they are confirmed on the quotation.
