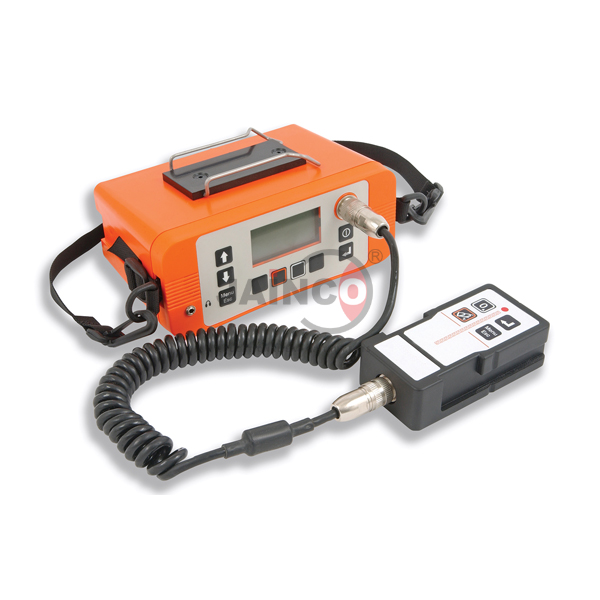

Covermeters and Half Cell Gauges
Product Code : JA-CT-9903
The Covermeters and Half Cell Gauges listing (SKU JA-CT-9903) covers a single rugged gauge that locates reinforcement bars in concrete, finds their orientation and measures the depth of cover over them. Coupled with a half cell such as copper-copper sulphate or silver-silver chloride, the same system measures the corrosion potential of rebars and steel within concrete. The on-screen graphic display highlights areas of low cover or potential corrosion, and readings link to Covermaster software for reports. It is supplied by JaincoLab for concrete testing laboratories.
Specifications
The gauge combines rebar location, cover measurement and half-cell mode, stores up to 240,000 readings, has a backlit screen, a waterproof case, four-key operation and rechargeable battery packs; measuring ranges are not listed in the product data and are confirmed on the quotation.
| Product | Covermeters and Half Cell Gauges |
| SKU | JA-CT-9903 |
| Functions | Rebar locator, covermeter and half-cell measurement in one gauge |
| Half cells | Copper-copper sulphate or silver-silver chloride |
| Memory | Up to 240,000 readings; output to PC or printer |
| Display | Backlit screen with graphic plot mode |
| Case | Rugged, waterproof |
| Controls | Four keys, single-handed operation |
| Software | Links to Covermaster software |
| Battery | Charged in the unit or externally |
Applications of the covermeter and half-cell gauge
Technicians scan to locate bars and record cover, then switch to half-cell mode over a grid to map corrosion potential, and download both data sets for the report.
- Measuring concrete cover in new work
- Locating and orienting rebars before drilling
- Half-cell corrosion surveys
- Condition assessment of bridges and buildings
- Non-destructive testing practicals
Scope of supply and ordering
This listing covers the covermeter and half-cell gauge. Accessories, spares and quantities are confirmed on the quotation. Half-cell electrode type, probes and software licence are confirmed on the quotation.
Lead time, MOQ and packing are set on each quotation for the ordered quantity and delivery destination. The Covermeters and Half Cell Gauges can be ordered for a single laboratory or as part of a complete laboratory package for a college or training programme.
Frequently asked questions
What can the gauge measure?
Rebar location and orientation, depth of cover and, with a half cell, corrosion potential.
How many readings can it store?
Up to 240,000 readings, with output to PC or printer.
Can it locate stainless steel rebars?
Yes, stainless steel rebars can be located.
Related products
- Cover Meter and Rebar Detector Profometer
- Corrosion Analysis
- Rebar and Wall Tie Locator
- Concrete Surface Resistivity Meter
For a complete concrete technology laboratory, see the concrete testing equipment range.
Request a quote
To get a quotation for the Covermeters and Half Cell Gauges, send SKU JA-CT-9903, the quantity and the delivery destination through the JaincoLab contact page or email [email protected]. Institutions and contractors buying under a tender can also reach us via the tenders page.
