Air Entrainment Meter
Product Code : JA-CT-9884

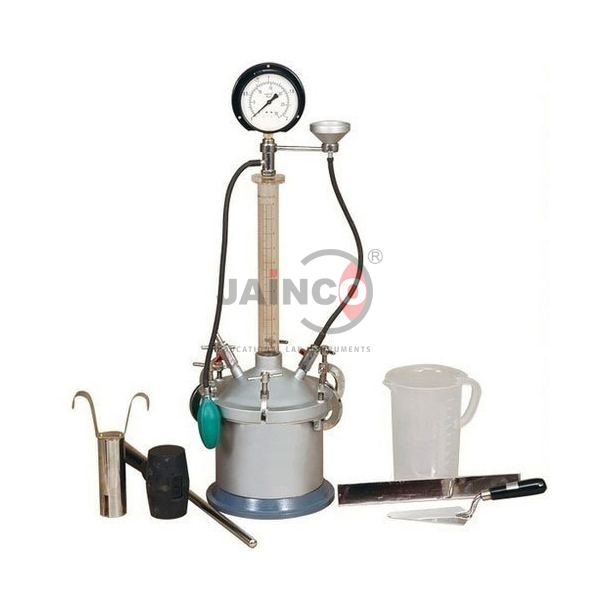

The Air Entrainment Meter (SKU JA-CT-9884) measures the air content of fresh concrete by the pressure method. It has a pressure-tight flanged cylindrical measuring bowl and a removable flanged conical cover with a seal, an air valve and a petcock for bleeding off water, and a standpipe graduated in per cent air content fixed on the cover. This model is supplied with a foot pump for applying pressure. The whole assembly is mounted on a flat base. It is supplied by JaincoLab for concrete technology laboratories.
Specifications
The meter comprises a flanged measuring bowl, a sealed conical cover with air valve and petcock, a standpipe graduated in per cent air, a foot pump and a flat base, and comes with a calibrating cylinder, pressure gauge, funnel, trowel and tamping bar; bowl capacity is not listed in the product data and is confirmed on the quotation.
| Product | Air Entrainment Meter |
| SKU | JA-CT-9884 |
| Method | Pressure method, air content of fresh concrete |
| Bowl | Pressure-tight flanged cylindrical measuring bowl |
| Cover | Removable flanged conical cover with seal, air valve and petcock |
| Reading | Standpipe graduated in per cent air content |
| Pressure | Foot pump (this model) |
| Accessories | Calibrating cylinder, pressure gauge, funnel, trowel, tamping bar |
Experiments with the air entrainment meter
Students fill the bowl with compacted concrete, clamp the cover, add water to the standpipe, apply pressure and read the air content directly from the graduated standpipe.
- Air content of fresh concrete
- Checking air-entraining admixture dosage
- Quality control of air-entrained concrete
- Calibration with the calibrating cylinder
- Concrete technology practicals
Scope of supply and ordering
This listing covers the air entrainment meter with foot pump, base and the listed accessories. Accessories, spares and quantities are confirmed on the quotation. Bowl capacity is confirmed on the quotation.
MOQ, lead time and packing for the Air Entrainment Meter are confirmed on each quotation for the quantity and delivery destination. Single units for one laboratory and complete sets for institutions or projects are both supplied.
Frequently asked questions
What does the meter measure?
The air content of fresh concrete, read in per cent on the standpipe.
How is pressure applied?
This model is supplied with a foot pump.
Which accessories are included?
A calibrating cylinder, pressure gauge, funnel, trowel and tamping bar.
