Condensers, Liebig
Product Code : JA-C-1601

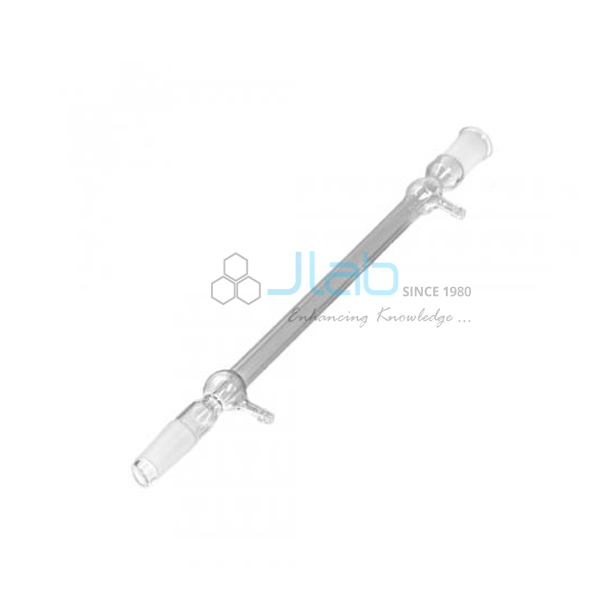

Condensers, Liebig (product code JA-C-1601) are straight water-cooled condensers, the standard condenser for teaching distillation. A Liebig condenser has a straight inner tube for the vapour inside an outer jacket through which cooling water flows. Seven sizes are listed, with item codes from CL60/00 to CL40/44, effective lengths from 60 mm to 400 mm and matching socket and cone from B10 to B29, for school, college and research laboratories.
Specifications
The Liebig condensers are listed by item code, effective length and joint size. Each size has a matching ground-glass socket and cone, from the 60 mm B10 micro size up to 400 mm lengths in B19, B24 and B29.
| Product | Condensers, Liebig |
| SKU / Product code | JA-C-1601 |
| Type | Liebig condenser, water cooled, socket and cone |
| CL60/00 | 60 mm effective length, B10 / B10 |
| CL15/11 | 150 mm effective length, B14 / B14 |
| CL20/22 | 200 mm effective length, B19 / B19 |
| CL20/33 | 200 mm effective length, B24 / B24 |
| CL40/22 | 400 mm effective length, B19 / B19 |
| CL40/33 | 400 mm effective length, B24 / B24 |
| CL40/44 | 400 mm effective length, B29 / B29 |
Applications of the Liebig condenser
The Liebig condenser is used in simple distillation, set at a slope between the still head and the receiver, and can also be used upright for gentle reflux.
- Simple distillation in CBSE, ICSE and B.Sc. practicals
- Preparing distilled water and purifying liquids
- Micro-scale distillation with the CL60/00 B10 size
- Solvent recovery with the 400 mm sizes
Scope of supply and ordering
The listing covers one Liebig condenser in the item code and size you select from the seven in the table. Water tubing, clamps, accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on the quotation for quantity and destination. JaincoLab supplies single-school orders, bulk college requirements and tender quantities, and exports to buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Which sizes are listed?
CL60/00 (60 mm, B10), CL15/11 (150 mm, B14), CL20/22 and CL20/33 (200 mm, B19 and B24), and CL40/22, CL40/33 and CL40/44 (400 mm, B19, B24 and B29).
Can the item code be used to order?
Yes. Quote the item code from the table with the quantity for each size.
Is a condenser for reflux listed too?
Yes. Allihn and double surface Davies condensers are listed in the same category.
Related products
Other condensers in the same category:
More condensers are listed in the Condenser category, part of the range from JaincoLab, a laboratory glassware manufacturer in India.
Request a quote
To order Condensers, Liebig, send the item codes, quantities and delivery destination through the JaincoLab contact page or email [email protected]. Tender and project enquiries can be sent through the tenders page.
