Condensers Air
Product Code : JA-C-1596

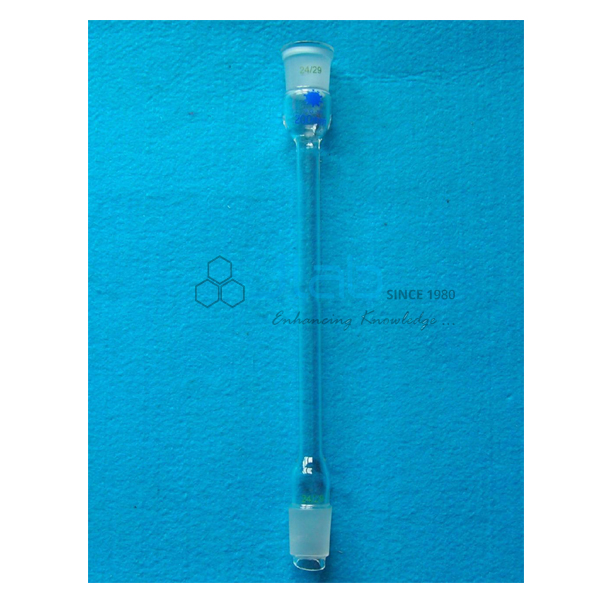

Condensers Air (product code JA-C-1596) are glass air condensers: plain tubes with a ground-glass cone at the bottom and a socket at the top, cooled by the surrounding air instead of running water. An air condenser is suited to liquids with high boiling points, where water cooling is not needed or could crack the glass. Seven sizes are listed, from 100 mm to 550 mm effective length with B10 to B29 joints, for college, pharmacy and research laboratories.
Specifications
The condensers are listed in seven sizes, each defined by cooling surface area, effective length, overall length and socket and cone size. Surface area ranges from 30 sq cm on the B10 size to 500 sq cm on the B29 size.
| Product | Condensers Air |
| SKU / Product code | JA-C-1596 |
| Type | Air condenser, socket and cone |
| B10 / B10 | 30 cm² surface, 100 mm effective, 120 mm overall |
| B14 / B14 | 100 cm² surface, 200 mm effective, 225 mm overall |
| B19 / B19, short | 100 cm² surface, 150 mm effective, 170 mm overall |
| B19 / B19, long | 200 cm² surface, 300 mm effective, 320 mm overall |
| B19 socket / B24 cone | 400 cm² surface, 400 mm effective, 430 mm overall |
| B24 / B24 | 400 cm² surface, 550 mm effective, 570 mm overall |
| B29 / B29 | 500 cm² surface, 550 mm effective, 570 mm overall |
Applications of the air condenser
Air condensers are fitted above a flask for reflux or used in distillation when the liquid boils high enough that air cooling condenses the vapour.
- Reflux of high-boiling liquids in organic preparations
- Distillation of liquids that boil well above the temperature of water
- Micro-scale work with the B10 and B14 sizes
- B.Sc., M.Sc. and pharmacy chemistry practicals
Scope of supply and ordering
The listing covers one air condenser in the size you select from the seven in the table. Clamps, accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for quantity and destination. JaincoLab supplies single laboratories, bulk orders for colleges and institutes, and export shipments to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Which sizes are listed?
Seven sizes with effective lengths of 100, 150, 200, 300, 400 and 550 mm and joints from B10 to B29, as shown in the table.
Does an air condenser need water?
No. It is cooled by the surrounding air, so it has no water jacket or hose connections.
When should I choose a water-cooled condenser instead?
For low-boiling solvents, a water-cooled type such as the Liebig or Allihn condenser is used.
