Condensers Allihn
Product Code : JA-C-1597

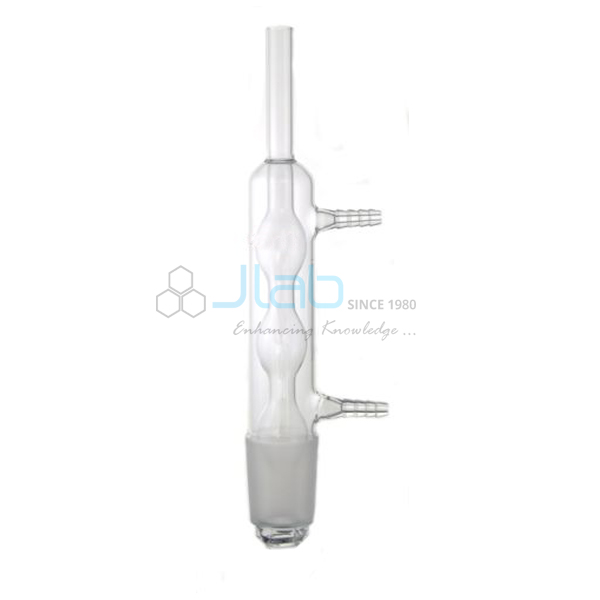

Condensers Allihn (product code JA-C-1597) are water-cooled bulb condensers used mainly for reflux. In an Allihn condenser the inner tube is formed into a row of bulbs, which gives a larger cooling surface than a straight tube of the same length and returns the condensed liquid to the flask. Seven sizes are listed, with 200 mm effective length and cones from B19 to B50, plus a 300 mm B24 version, for college, pharmacy and research laboratories.
Specifications
The Allihn condensers are listed in seven sizes, defined by cooling surface area, effective length, overall length and joint size. Six sizes have a 200 mm effective length with a cone only, from B19 to B50, and one 300 mm size has both a B24 socket and a B24 cone.
| Product | Condensers Allihn |
| SKU / Product code | JA-C-1597 |
| Type | Allihn (bulb) condenser, water cooled |
| B19 cone | 130 cm² surface, 200 mm effective, 285 mm overall |
| B24 cone | 130 cm² surface, 200 mm effective, 285 mm overall |
| B29 cone | 130 cm² surface, 200 mm effective, 295 mm overall |
| B34 cone | 130 cm² surface, 200 mm effective, 310 mm overall |
| B40 cone | 130 cm² surface, 200 mm effective, 310 mm overall |
| B50 cone | 150 cm² surface, 200 mm effective, 310 mm overall |
| B24 socket / B24 cone | 180 cm² surface, 300 mm effective, 400 mm overall |
Applications of the Allihn condenser
Allihn condensers sit vertically on a boiling flask so that vapour condenses on the bulbs and runs back down, keeping the reaction volume constant during long heating.
- Reflux of reaction mixtures in organic synthesis practicals
- Heating under reflux in pharmacy and B.Sc. chemistry laboratories
- Soxhlet extraction set-ups that need a reflux condenser
- Large-neck flasks with B34, B40 or B50 sockets
Scope of supply and ordering
The listing covers one Allihn condenser in the size you select from the seven in the table. Water tubing, clamps, accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on the quotation for quantity and destination. JaincoLab supplies single laboratories, bulk orders for colleges and research institutes, and export orders to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Which sizes are listed?
200 mm effective length with B19, B24, B29, B34, B40 or B50 cone, and 300 mm effective length with a B24 socket and cone.
What is an Allihn condenser used for?
Mainly for reflux, where condensed liquid must drain back into the flask.
Why do most sizes have no socket?
The listed 200 mm sizes have a cone only for fitting into the flask. The 300 mm size also has a B24 socket at the top.
