Rebar and Wall Tie Locator
Product Code : JA-CT-9904

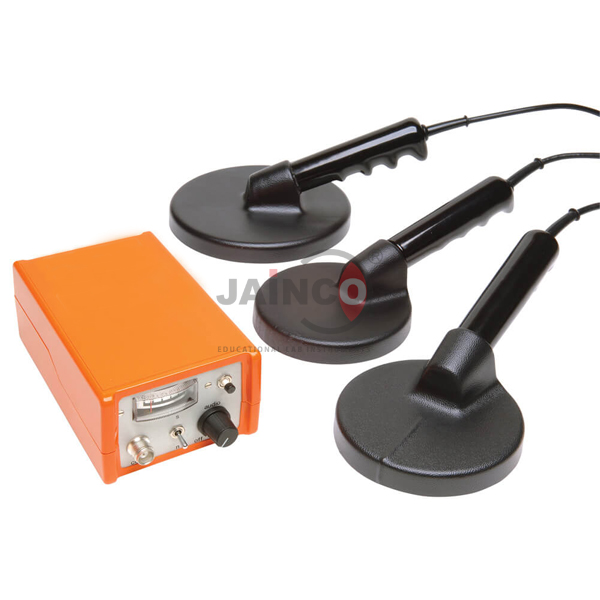

The Rebar and Wall Tie Locator (SKU JA-CT-9904) is a rugged gauge for finding steel in concrete and masonry. It is supplied with three detector heads: two 100 mm mild steel search heads and an additional 150 mm search head that also locates copper and some types of stainless steel. It detects mild and stainless steel rebars, bed joint reinforcement and hoop irons, locates wiring in plaster walls and can be used as a stud locator. A clear audio tone guides the operator, so there is no need to keep watching the meter. It is supplied by JaincoLab for concrete and building survey work.
Specifications
The locator has three search heads (two 100 mm, one 150 mm), a single on/off and sensitivity control, built-in loudspeaker, 3.5 mm headphone socket, stainless-steel detect or ignore switch, ABS control unit and leather case with shoulder strap; detection depths are not listed in the product data and are confirmed on the quotation.
| Product | Rebar and Wall Tie Locator |
| SKU | JA-CT-9904 |
| Search heads | Two 100 mm mild steel heads; one 150 mm head |
| Detects | Mild and stainless steel rebars, bed joint reinforcement, hoop irons, wall ties, wiring in plaster |
| Control | Single button for on/off and sensitivity |
| Audio | Built-in loudspeaker; 3.5 mm stereo headphone socket |
| Stainless steel | Switchable to detect or ignore |
| Construction | ABS control unit; epoxy-encapsulated search coils |
| Case | Leather carry case with shoulder strap |
Applications of the rebar and wall tie locator
Operators sweep the search head over the wall or slab, follow the audio tone to the strongest signal at the centre of the head and mark each bar, tie or stud position.
- Locating wall ties in cavity walls
- Finding rebars before drilling or coring
- Detecting bed joint reinforcement and hoop irons
- Locating wiring and studs in walls
- Building survey practicals
Scope of supply and ordering
This listing covers the rebar and wall tie locator with three search heads and leather case. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing for the Rebar and Wall Tie Locator are confirmed on each quotation for the quantity and delivery destination. Single units for one laboratory and complete sets for institutions or projects are both supplied.
Frequently asked questions
Which search heads are supplied?
Two 100 mm mild steel search heads and one 150 mm search head.
Can it find stainless steel?
Yes, and it can be switched to detect or ignore stainless steel.
Does it give an audio signal?
Yes, through a built-in loudspeaker or headphones on a 3.5 mm socket.
