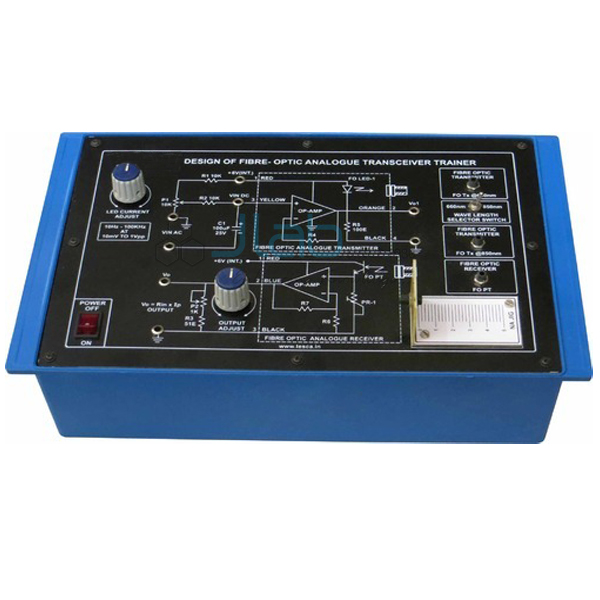

Advanced Fibre Optic Analogue Transceiver Trainer
Product Code : JA-FOT-1538
The Advanced Fibre Optic Analogue Transceiver Trainer covers the measurement side of analogue fibre links: numerical aperture, fibre losses at 660 nm and 850 nm, the E/O and O/E characteristics, and a linear intensity-modulation link with its gain, frequency response, distortion and gain-bandwidth product. It includes 1 m and 5 m PMMA patch cords, an NA jig and a mandrel (SKU JA-FOT-1538).
Specifications
Listed features:
| Product | Advanced Fibre Optic Analogue Transceiver Trainer |
| SKU | JA-FOT-1538 |
| Transmitters | Analogue fibre-optic transmitters at 660 nm and 850 nm, selected by SPDT switch |
| Receiver | Fibre-optic receiver with phototransistor |
| Controls | Two potentiometers for LED forward current (transmitter) and phototransistor current (receiver) |
| Fibre and fittings | 1 m and 5 m PMMA fibre patch cords; in-line SMA adaptor; mandrel |
| NA measurement | NA jig with length scale; measuring scale for the LED spot width |
| Power | IC-regulated DC supply; 230 V ±10%, 50 Hz AC mains; switch, fuse and jewel light |
| Weight | 3 kg approx. |
| Dimensions | W 340 x H 110 x D 210 (as listed) |
| Also required | AF/RF generator 10 Hz to 1 MHz, digital multimeter, 20 MHz oscilloscope and digital fibre-optic power meter |
Experiments listed
The trainer is listed for:
- Numerical aperture of the optical fibre
- Losses in optical fibres and other cables at 660 nm and 850 nm
- E/O characteristics at 660 nm and 850 nm and the O/E characteristic of the phototransistor
- Design of a linear intensity-modulation system for analogue transmission
- Gain, frequency response, waveform distortion and gain-bandwidth product of that system
Scope of supply and ordering
The listing covers the trainer with both transmitters, the receiver, the two PMMA patch cords, the SMA adaptor, NA jig, mandrel and patch leads, supplied by JaincoLab; the generator, multimeter, oscilloscope and power meter are separate items. Packing, lead time and the quantity per order are agreed on the quotation.
Frequently asked questions
Which wavelengths can be studied?
660 nm and 850 nm; an SPDT switch selects the transmitter.
How is numerical aperture measured?
With the NA jig, which has a length scale marked on it, together with the measuring scale for the spot width.
What fibre lengths are supplied?
One 1 m and one 5 m PMMA fibre patch cord, which can be joined through the in-line SMA adaptor.
