Physics of Fiber Optics Trainer
Product Code : JA-FOT-1543

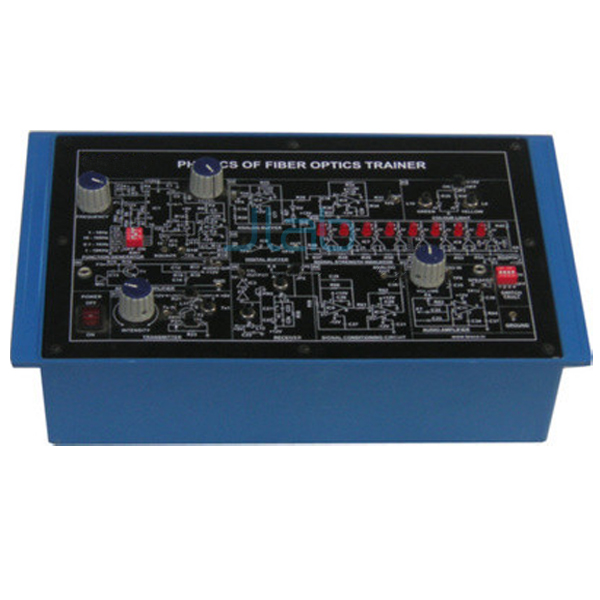

The Physics of Fiber Optics Trainer introduces optical fibre behaviour with a 635 nm red LED transmitter, two silicon photodetectors and 1 m and 5 m plastic fibres, then builds analogue, digital and voice links. It has an on-board sine and TTL square-wave generator, an 8-LED signal strength indicator and four switch faults for fault-finding practice (SKU JA-FOT-1543).
Specifications
Specifications from the listing:
| Product | Physics of Fiber Optics Trainer |
| SKU | JA-FOT-1543 |
| Transmitter | 1 LED, peak emission 635 nm (red, visible); intensity modulation |
| Receivers | 2 silicon photodetectors |
| Bandwidth | Analogue 35 kHz; digital 50 kHz |
| Function generator | Sine and TTL square wave; 1 Hz to 10 kHz in four ranges; 0 to 4 Vpp (except square wave) |
| Signal strength indicator | 8 LEDs |
| Fibre | 1000 micron step-index multimode plastic fibre, 1 m and 5 m with connectors |
| Power supply | +5 V, +12 V, -12 V at 100 mA, internal |
| Accessories | 10 short links, 2 crocodile links, NA jig and NA scale, connection sleeve (splicing unit), microphone, speaker, mandrel, experiment manual |
| Also required | 20 MHz oscilloscope |
Experiments on the fibre optics trainer
The experiment list includes:
- Light guided around corners, and coloured light travelling down a fibre
- LED output as a function of current; photodetector response; light coupling between two fibres and across a gap
- Fibre-optic transmission and reflection sensors
- Numerical aperture of the optical fibre
- Analogue, digital and voice fibre-optic links
- Propagation, connector and bending losses
- Switch faults in the generator, preamplifier, signal-strength and audio amplifier sections
Scope of supply and ordering
Supplied by JaincoLab, the trainer comes with the accessories listed above, including both fibre lengths, the microphone, speaker and experiment manual. Quantities, packing and delivery lead time are stated on each quotation.
Frequently asked questions
What light source and detectors does it use?
A 635 nm red LED transmitter and two silicon photodetectors.
Which fibre losses can be measured?
Propagation loss in the fibre, connector loss and bending loss.
What is the switch-fault section for?
Four switch faults, in the function generator, audio preamplifier, signal strength and audio amplifier sections, let students study the effect of each fault.
