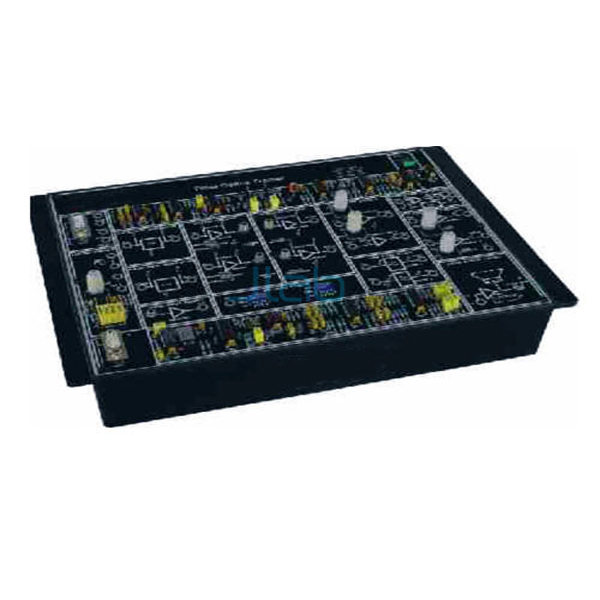

Advanced Fiber Optics Trainer
Product Code : JA-AET-1478
The advanced fiber optics trainer is a full-duplex analog and digital fiber optic link with 660 nm and 950 nm channels, AM, FM and PWM modulation and demodulation, and PC-to-PC communication through RS232 ports with software. It also has an on-board function generator, a voice link, switched faults and an NA measurement jig and mandrel, and its experiments include work with an optical power meter (SKU JA-AET-1478).
Specifications
Technical data listed for the advanced trainer:
| Product | Advanced Fiber Optics Trainer |
| SKU | JA-AET-1478 |
| Link | Full duplex analog and digital, 660 nm and 950 nm channels |
| Transmitters | 2 fiber optic LEDs, peak emission 660 nm and 950 nm |
| Receivers | 2 fiber optic photodetectors |
| Modulation | AM, FM, PWM |
| Clock | Crystal controlled, 4.096 MHz |
| Filters | 2, 4th order Butterworth, 3.4 kHz cut-off |
| Other blocks | Driver with analog and digital modes; PLL detector; 2 AC amplifiers; 2 comparators |
| Bandwidth | Analog 350 kHz; digital 2.5 MHz |
| Computer link | RS232 ports with software, for PC-to-PC communication |
| Included | NA measurement jig and mandrel for bending loss; built-in DC power supply; on-board function generator and voice link; switched faults on transmitter and receiver |
Experiments on the advanced trainer
The listed experiments include:
- Setting up analog and digital fiber optic links
- AM with analog and digital input signals; FM and PWM systems
- Propagation loss, bending loss and numerical aperture measurement
- Characteristics of the E-O converter (LED) and of the fiber optic link
- Voice link using AM, FM and PWM
- Switched faults in the AM, FM and PWM systems
- Full-duplex computer communication using RS232 ports and software
Scope of supply and ordering
The listing covers the advanced fiber optics trainer with its NA jig, mandrel and PC communication software, supplied by JaincoLab; the fiber cable set and optical power meter supplied with it are confirmed on the quotation. The number of units, the packing and the dispatch time are confirmed on the quotation.
Frequently asked questions
Which wavelengths does the advanced trainer use?
Two channels, 660 nm and 950 nm, each with its own LED transmitter and photodetector.
Can two computers communicate over the fiber link?
Yes. Full-duplex PC-to-PC communication runs through RS232 ports with the supplied software.
What bandwidth does the link offer?
350 kHz analog bandwidth and 2.5 MHz digital bandwidth.
How does it differ from the elementary model?
The elementary trainer (SKU JA-AET-1477) is a single 660 nm simplex link without the 950 nm channel or RS232 communication.
