Fibre Optic Voice Transmitter and Receiver Trainer
Product Code : JA-FOT-1541

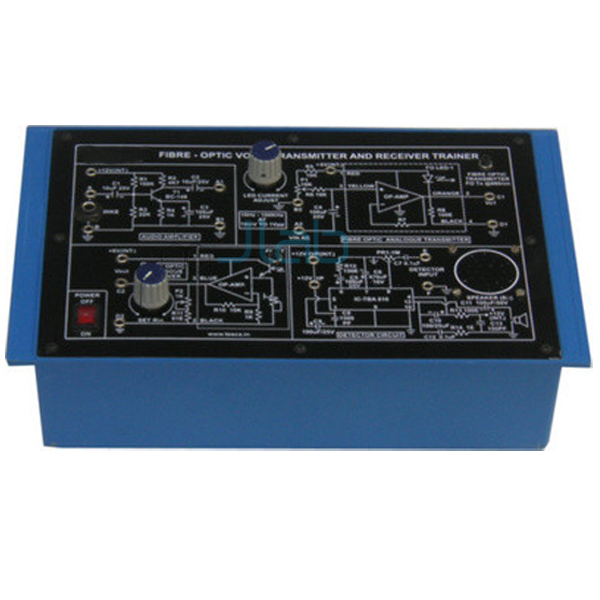

The Fibre Optic Voice Transmitter and Receiver Trainer sends audio and speech over plastic optical fibre: a microphone feeds an audio amplifier and a 660 nm fibre-optic transmitter, and a phototransistor detector drives an 8 ohm speaker at the far end. It is used for experiments on fibre-optic transmission of audio and voice signals (SKU JA-FOT-1541).
Specifications
Listed parts and ratings:
| Product | Fibre Optic Voice Transmitter and Receiver Trainer |
| SKU | JA-FOT-1541 |
| Transmitter | Fibre-optic transmitter at 660 nm with audio amplifier circuit, mike connector and LED-current potentiometer |
| Receiver | Fibre-optic phototransistor with detector circuit and 8 ohm speaker |
| Built-in supply | 12 V and 6 V DC at 200 mA, IC-regulated, internally connected |
| Fibre | 1 m and 5 m PMMA patch cords with in-line adaptor |
| Accessories | Microphone; stackable 4 mm patch cords, ½ metre |
| Mains | 230 V ±10%, 50 Hz; switch, fuse and jewel light |
| Weight | 3 kg approx. |
| Dimensions | W 340 x H 110 x D 210 (as listed) |
| Also required | 20 MHz oscilloscope; AF/RF generator 10 Hz to 1 MHz |
Experiments
The two listed experiments are:
- Fibre-optic transmitter and receiver for audio signal transmission
- Fibre-optic transmitter and receiver for voice signal transmission
Scope of supply and ordering
The listing covers the voice trainer with its microphone, patch cords and PMMA fibre cords, supplied by JaincoLab. Pack quantities, packing method and lead time are fixed on the quotation.
Frequently asked questions
How is speech transmitted?
A microphone feeds the audio amplifier and the 660 nm transmitter; at the receiver the phototransistor detector drives an 8 ohm speaker.
What fibre is supplied?
1 m and 5 m PMMA patch cords with an in-line adaptor.
