Advanced Dynamic Triaxial Testing System
Product Code : JA-ST-9782

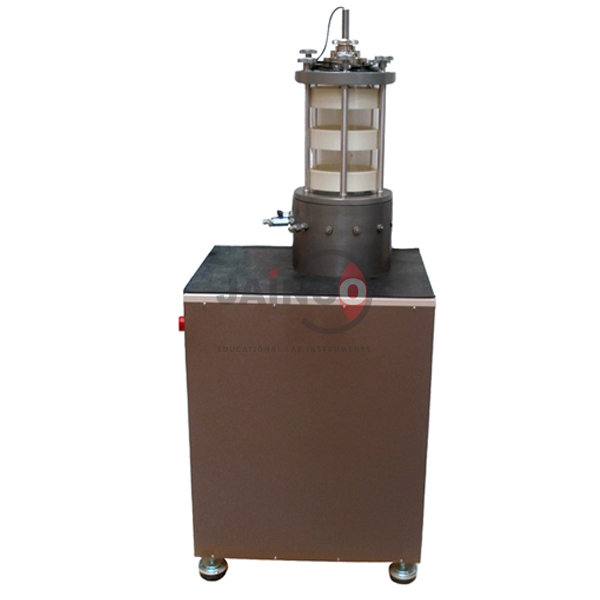

The Advanced Dynamic Triaxial Testing System (SKU JA-ST-9782) is a triaxial apparatus for dynamic soil testing in which axial force and axial deformation are applied through the base of the cell. A dynamic actuator applies load, deformation or stress at frequencies up to 10 Hz, which suits research and postgraduate geotechnical laboratories studying soil behaviour under repeated loading. The system is supplied by JaincoLab.
Specifications
These are the loading and drive details given for the system; the working frequency depends on the version ordered.
| Product | Advanced Dynamic Triaxial Testing System |
| SKU | JA-ST-9782 |
| Test type | Dynamic triaxial testing of soil |
| Loading arrangement | Axial force and axial deformation applied through the base of the cell |
| Dynamic actuator | Load, deformation and stress control up to 10 Hz |
| Drive | Cell screw-driven from an integral base unit housing the motor drive |
| Dynamic cell pressure | Optional actuator; cell pressure cycled up to the machine fundamental frequency (2 Hz, 5 Hz or 10 Hz) |
Applications of the dynamic triaxial testing system
Dynamic triaxial tests reproduce loads that repeat or cycle rather than rise steadily, so the system is used for:
- Cyclic triaxial tests on sands and clays in liquefaction and earthquake-loading studies
- Repeated-load tests on subgrade and base materials that model traffic loading
- Research on soil stiffness and strength under combined cyclic axial load and cell pressure
- Postgraduate and doctoral projects in soil dynamics
Scope of supply and ordering
The listing covers the triaxial cell and base unit with its dynamic actuator; the optional dynamic cell pressure actuator and the frequency version are chosen at the time of order. The number of units, the packing and the dispatch time are confirmed on the quotation.
Frequently asked questions
What frequencies can the dynamic actuator reach?
The actuator applies load, deformation and stress at up to 10 Hz. With the optional dynamic cell pressure actuator, cell pressure can also be cycled up to the machine fundamental frequency of 2 Hz, 5 Hz or 10 Hz, depending on the version.
How is the axial load applied?
Axial force and axial deformation are applied through the base of the cell, which is screw-driven from an integral base unit that houses the motor drive.
