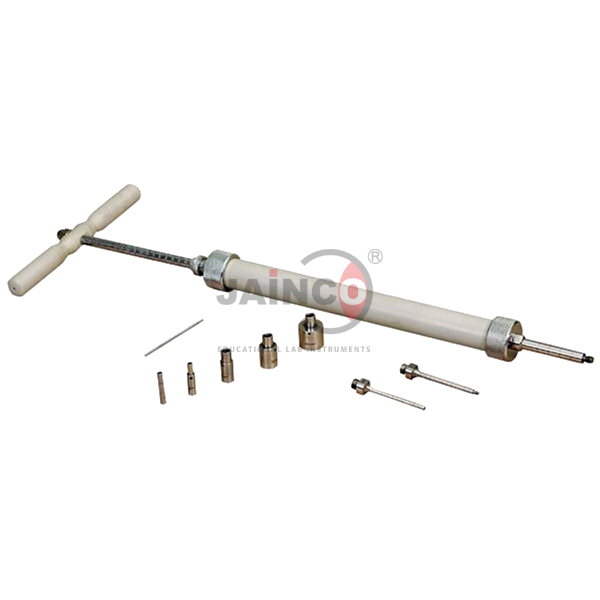

Proctor Penetrometer
Product Code : JA-ST-9825
The Proctor Penetrometer (SKU JA-ST-9825) gives a quick check on soil compaction. During standard compaction tests in the laboratory it is pushed into each compacted sample with a Proctor needle, so that curves of moisture content against dry density and penetration resistance can be drawn; on site, the same curves let the penetration reading guide compaction control. A spring-loaded plunger reads 0-40 kg in 1 kg steps.
Specifications
The penetrometer is built as follows:
| Product | Proctor Penetrometer |
| SKU | JA-ST-9825 |
| Body | Houses a calibrated spring |
| Plunger | Calibrated 0-40 kg x 1 kg |
| Handle | Fitted |
| Stems | One larger and one shorter stem, both graduated at 12.5 mm intervals for depth of penetration |
| Needles | Larger stem for larger-area needles; smaller stem for smaller-area needles |
Uses of the Proctor penetrometer
- Building moisture, dry density and penetration resistance curves during standard compaction tests
- Quick field checks of compacted fill against the laboratory curves
- Compaction control on embankment and sub-grade works
Scope of supply and ordering
The listing covers the penetrometer with its two stems; state the set of Proctor needles required. Order quantity, packing and delivery time are set out on each quotation.
Frequently asked questions
What range does the plunger read?
The plunger is calibrated to read 0-40 kg in 1 kg divisions.
Why are there two stems?
The larger stem is used with needles of larger area and the smaller stem with needles of smaller area; both are graduated at 12.5 mm intervals to show the depth of penetration.
How is it used for field compaction control?
Moisture content and dry density in the field are judged from the penetration reading using the curves developed in the laboratory during standard compaction tests.
