1 : 8 Line Demultiplexer
Product Code : JA-DET-1524

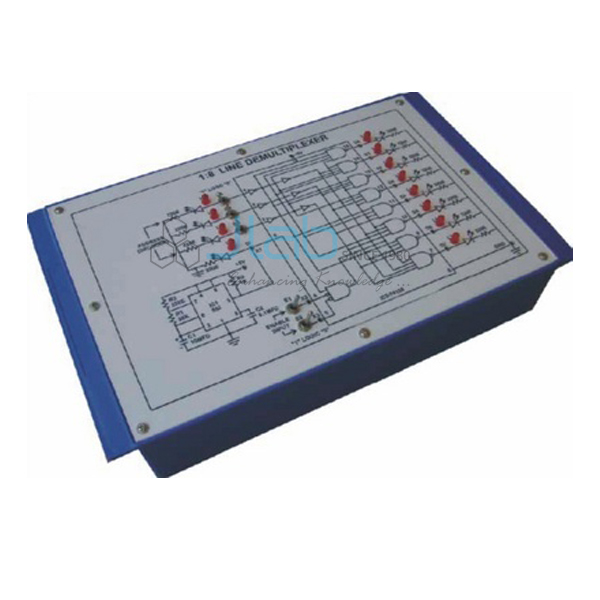

The 1:8 line demultiplexer board shows one input being demultiplexed to eight outputs under three address inputs. SPDT switches set the address and data, LEDs show the output states, a timer is built in, and the board runs from a 5 V, 50 mA regulated supply; a dual trace oscilloscope is used to view the signals (SKU JA-DET-1524).
Specifications
Listed parts:
| Product | 1 : 8 Line Demultiplexer |
| SKU | JA-DET-1524 |
| DC supply | +5 V DC at 50 mA, IC regulated, internally connected |
| Demultiplexer | 1 input to 8 outputs, three address inputs |
| Timer | Fitted |
| Inputs | SPDT switches for logic selection |
| Indicators | LEDs for status |
| Other apparatus required | Dual trace CRO 20 MHz |
Scope of supply and ordering
The listing covers the demultiplexer board with operating instructions, supplied by JaincoLab. Lead time and packing depend on the order size and are confirmed when we quote.
Frequently asked questions
How many outputs does the demultiplexer have?
Eight outputs from one input, selected by three address inputs.
What instrument is needed?
A dual trace 20 MHz oscilloscope.
