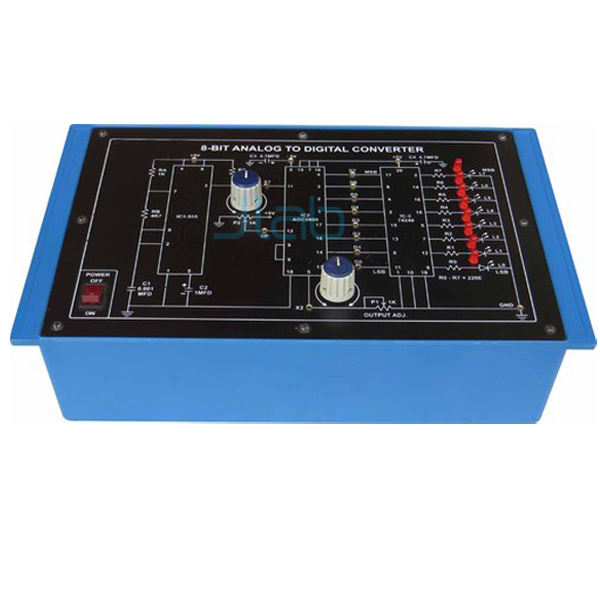

Analog to Digital Converter
Product Code : JA-DET-1515
The analog to digital converter trainer is a self-contained board for studying how an analog voltage is converted to a digital signal and how a digital voltmeter works. A 0-15 V variable input, read on a 0-15 V meter, is converted to a 4-bit word shown on two seven-segment displays and LEDs, using a voltage comparator, logic gate ICs, a J-K flip-flop, a 4-bit ripple counter and a timer (SKU JA-DET-1515).
Specifications
Listed parts and specifications:
| Product | Analog to Digital Converter |
| SKU | JA-DET-1515 |
| DC supplies | +5 V at 250 mA; -5 V at 50 mA; +10 V at 50 mA; IC regulated, internally connected |
| Variable supply | 0-15 V DC at 50 mA, continuously variable |
| Meter | DC voltmeter, 65 mm rectangular dial, 0-15 V |
| ICs | Voltage comparator; quad 2-input NAND, NOR, AND and EX-OR gates; dual 4-input AND; three hex buffer/drivers; BCD-to-7-segment decoder/driver; dual J-K flip-flop; 4-bit binary ripple counter; timer |
| Display | Two seven-segment displays (0 to 15); seven LEDs showing key circuit states |
| Clock | Manual pulses or internal clock |
| Analog input range | 0 to +15 V |
| Digital word length | 4 bits |
| Other apparatus | None required; the board is self-contained |
| Mains | 230 V ±10%, 50 Hz AC; ON/OFF switch, fuse and jewel light |
Experiments
The listed objects are:
- Basic principle of analog to digital conversion
- Working of a digital voltmeter
Scope of supply and ordering
The listing covers the self-contained ADC board with patch cords and operating instructions, supplied by JaincoLab. The quotation states the packing, the lead time and the number of units.
Frequently asked questions
What resolution does the ADC trainer use?
A 4-bit digital word, displayed as 0 to 15 on seven-segment displays.
How is the analog input shown?
On a 0-15 V DC voltmeter with a 65 mm rectangular dial, while the digital result appears on the displays and LEDs.
Does it need other instruments?
No. The board is self-contained and requires no other apparatus.
