8-Bit Analog to Digital Converter
Product Code : JA-DET-1521

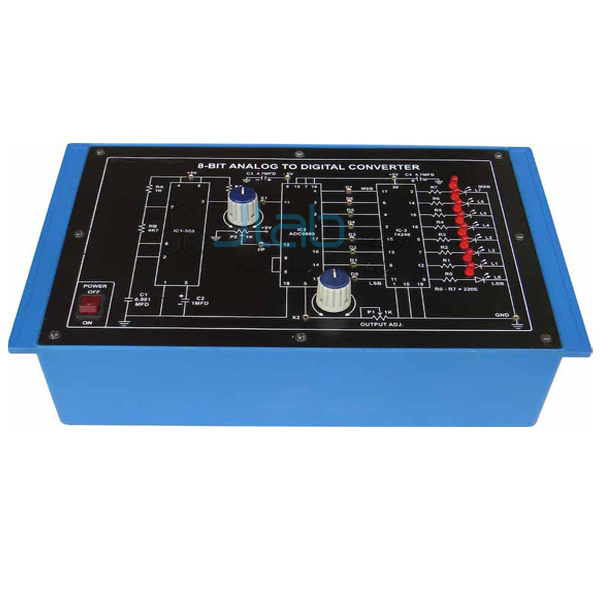

The 8-bit analog to digital converter trainer converts an analog signal into an 8-bit digital signal with the ADC 0800, a successive approximation converter. The board carries a 555 timer, a 74240 buffer, LED status indicators and a ±5 V DC, 50 mA regulated supply, and is used with a 3¾ digit digital multimeter (SKU JA-DET-1521).
Specifications
The 8-bit ADC board is listed with:
| Product | 8-Bit Analog to Digital Converter |
| SKU | JA-DET-1521 |
| Converter IC | ADC 0800, successive approximation |
| DC supply | ±5 V DC at 50 mA, IC regulated, internally connected |
| Timer | IC 555 |
| Buffer | IC 74240 |
| Indicators | LEDs for status |
| Other apparatus required | Digital multimeter, 3¾ digit |
Scope of supply and ordering
The listing covers the 8-bit ADC board with operating instructions, supplied by JaincoLab; a digital multimeter is listed as other apparatus required. Order quantity, packing and delivery time are set out on each quotation.
Frequently asked questions
Which ADC IC is used?
The ADC 0800, which converts by successive approximation.
What is the output resolution?
An 8-bit digital output; LEDs show the status.
What else is needed?
A 3¾ digit digital multimeter.
