Binary to Decimal Encoder
Product Code : JA-DET-1517

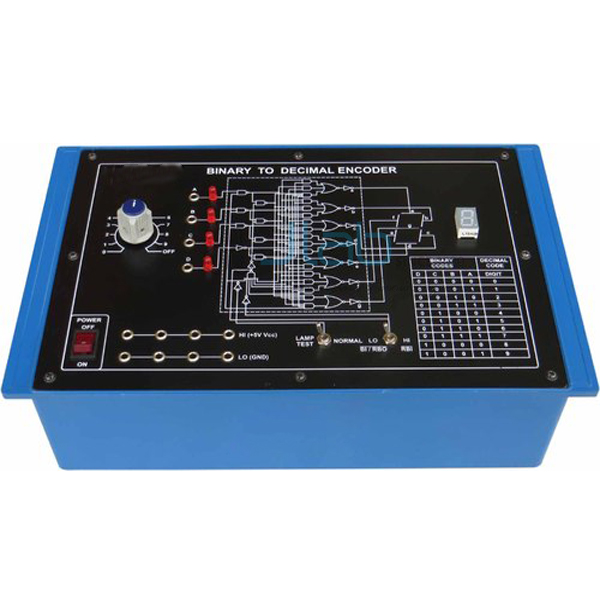

The binary to decimal encoder board shows 4-bit binary codes as decimal digits on a seven-segment display. A selector switch sets digits 0 to 9 with the matching binary code shown on LEDs A, B, C and D, an unknown 4-bit code can be fed in to read its decimal value, and a DPDT switch tests the display segments; a BCD-to-7-segment decoder/driver and a 5 V supply are built in (SKU JA-DET-1517).
Specifications
Parts and specifications listed:
| Product | Binary to Decimal Encoder |
| SKU | JA-DET-1517 |
| DC supply | +5 V DC at 50 mA, IC regulated, internally connected |
| Decoder | BCD-to-7-segment decoder/driver |
| Digit selector | Selector switch for digits 0 to 9 with binary code indicator |
| Lamp test | DPDT switch |
| Inputs | Switch for logic selection |
| Indicators | LEDs for binary code A, B, C, D |
| Input word length | 4 bits |
| Display | Seven-segment, 0 to 9 |
| Patch cords | 4 mm spring-loaded plugs, stackable from the rear at both ends, 0.5 m |
| Other apparatus | None required; the board is self-contained |
Scope of supply and ordering
The listing covers the binary to decimal encoder board with patch cords, supplied by JaincoLab. Pack quantities, packing method and lead time are fixed on the quotation.
Frequently asked questions
What range of digits does the encoder display?
0 to 9 on a seven-segment display, from a 4-bit input.
Can an unknown code be decoded?
Yes. An unknown 4-bit binary code can be fed in and its decimal value read on the display.
How are the display segments checked?
A DPDT switch provides a lamp test of the seven-segment display.
