Wood Microtome
Product Code : JA-M-6589

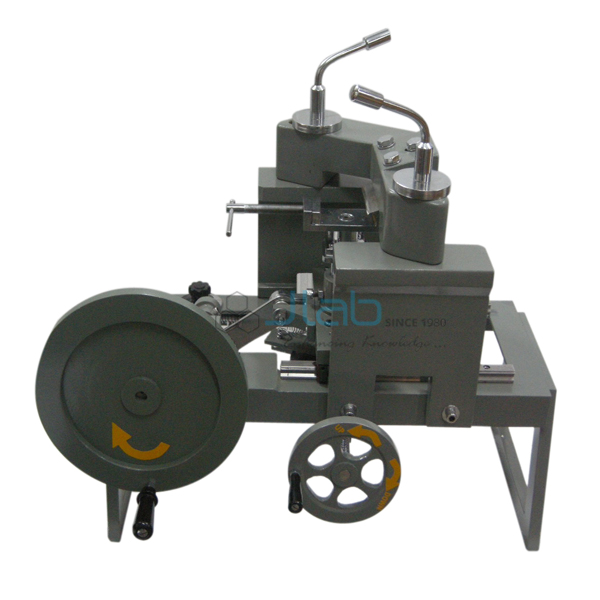

The Wood Microtome (SKU JA-M-6589) is a heavy duty microtome for cutting thin sections of hard materials such as wood and bone, in samples up to 8 x 5 cm. In this wood microtome the razor is fixed and the sample is fed upwards and sliced, in steps of 1 micron up to 35 microns, with the object held in a 65 x 30 mm vice on a 304 mm slide way. JaincoLab manufactures it for botany, forestry, wood science and bone histology laboratories.
Specifications
Feed adjustment and vertical object displacement are both 35 microns, the object vice opens 65 x 30 mm, the slide way is 304 mm long and the overall size is 686 x 480 x 686 mm.
| Product | Wood Microtome |
| SKU | JA-M-6589 |
| Material | Wood, bone and other hard material |
| Sample size | Up to 8 x 5 cm |
| Section steps | 1 micron, up to 35 microns |
| Feed adjustment | 35 microns |
| Vertical object displacement | 35 microns |
| Object vice opening | 65 x 30 mm |
| Slide way length | 304 mm |
| Razor | Fixed |
| Overall dimensions | 686 x 480 x 686 mm |
Applications of the wood microtome
Thin transverse, radial and tangential sections of wood show vessel, fibre and ray structure under the microscope.
- Wood anatomy sections in botany and forestry courses
- Timber identification work in wood science laboratories
- Sections of bone and other hard tissue
- Research on plant stems and hard materials
Scope of supply and ordering
The listing covers the heavy duty wood microtome with object vice and fixed razor. Spare razors and sharpening accessories are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of microtomes and the delivery destination. Single units and bulk institutional and tender quantities are supplied.
Frequently asked questions
What materials can it section?
Hard materials such as wood and bone, in samples up to 8 x 5 cm.
What section thickness is possible?
Sections are cut in 1 micron steps up to 35 microns.
How large is it?
The overall size is 686 x 480 x 686 mm, with a 304 mm slide way.
Related products
This microtome is listed in the JaincoLab microtomes and histology range.
Request a quote
To order the Wood Microtome, send the quantity and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-M-6589. Tender and project enquiries can be sent through the tenders page.
