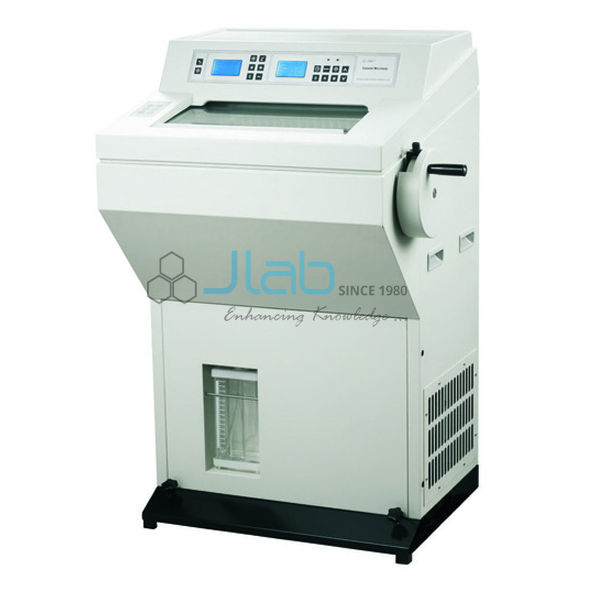

Cryostat Microtome
Product Code : JA-M-2336
The Cryostat Microtome (SKU JA-M-2336) cuts sections of freshly frozen tissue quickly, freezing the specimen on a built-in rapid freeze stage for biological, veterinary and medical laboratory work. This cryostat microtome is made of brass and stainless steel and sits in a stainless steel cold chamber with an observation glass window, cooled by a hermetically sealed compressor unit to as low as -50°C. JaincoLab manufactures it for pathology, histology and research laboratories.
Specifications
The microtome feeds from 0 to 40 microns in 2 micron steps inside a stainless steel cold chamber cooled to -50°C by a hermetically sealed compressor.
| Product | Cryostat Microtome |
| SKU | JA-M-2336 |
| Microtome construction | Brass and stainless steel |
| Chamber | Stainless steel cold chamber with observation glass window |
| Freezing | Built-in rapid freeze stage |
| Cooling | Hermetically sealed compressor unit, down to -50°C |
| Feed range | 0-40 microns, in 2 micron steps |
| Accessories | Razor 120 mm with back and handle, object holders (set of three), honing stone, low temperature oil can, dust cover |
Applications of the cryostat microtome
Cutting inside a cold chamber keeps the frozen block and the knife at low temperature, so thin frozen sections stay intact.
- Frozen sections in histopathology teaching and research
- Veterinary and biological tissue sectioning
- Enzyme histochemistry and immunostaining on frozen tissue
- Research laboratories needing fast sections of fresh tissue
Scope of supply and ordering
The listing covers the cryostat microtome with cold chamber and compressor, a 120 mm razor with back and handle, three object holders, honing stone, low temperature oil can and dust cover. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of microtomes and the delivery destination. Single units and bulk institutional and tender quantities are supplied.
Frequently asked questions
How cold does the chamber get?
The sealed compressor cools it to as low as -50°C.
What feed range does it have?
0 to 40 microns, in steps of 2 microns.
Can the cutting be watched?
Yes. The cold chamber has an observation glass window.
Related products
This cryostat is listed in the JaincoLab microtomes and histology range.
Request a quote
To order the Cryostat Microtome, send the quantity and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-M-2336. For tender or project supply, see our tenders page.
