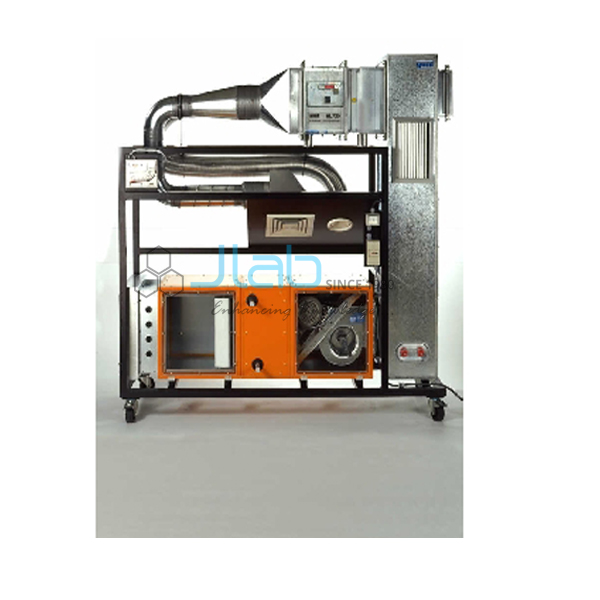

Ventilation System Trainer
Product Code : JA-ELA-5451
The Ventilation System Trainer (SKU JA-ELA-5451) is a working ventilation system, supplied by JaincoLab, for building services engineering courses. Ventilation systems deliver the required air change rate to each room, and the air can be heated or cooled by heat exchangers; this trainer emphasises ventilation rather than full air conditioning. It is assembled from standard industrial components, and Plexiglas windows and exposed ductwork reveal parts that are normally hidden.
Specifications
Visible components include inspection covers, fire dampers, filters, heater/cooler and a louvre damper, and the system keeps its original function.
| Product | Ventilation System Trainer |
| SKU | JA-ELA-5451 |
| Construction | Standard industrial ventilation components |
| Visibility | Plexiglas windows and exposed ductwork |
| Visible components | Inspection covers, fire dampers, filters, heaters/coolers, louvre damper |
| Air treatment | Heating or cooling by heat exchangers |
| Services | Hot or cold water (by operating mode); three-phase mains supply |
| Option | Additional module for room temperature control |
Training topics
- Air change rates and ventilation of rooms
- Function of fire dampers, filters and louvre dampers
- Heating and cooling of supply air with heat exchangers
- Room temperature control with the additional module
Scope of supply and ordering
The listing covers the ventilation system trainer; the room temperature control module is an addition, and water and three-phase connections, quantity and lead time are confirmed on the quotation.
Frequently asked questions
What services does the trainer need?
A three-phase mains supply, and hot or cold water depending on whether it runs in heating or cooling mode.
Can hidden components be seen?
Yes. Plexiglas windows and exposed ductwork show inspection covers, fire dampers, filters, heaters and coolers and the louvre damper.
Can it control room temperature?
Yes, with the additional module.
